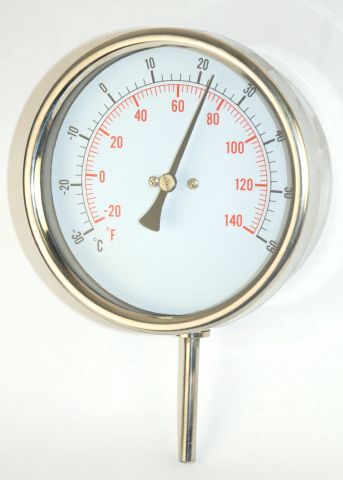

(001) 100mm Stainless Steel Thermometer
The Ashford Instrumentation 100mm Diameter Bimetal All Stainless Steel Thermometer was developed specially for the Heating & Ventilation Industry where the application calls for the thermometer to be located outdoors. This thermometer can be used on a variety of applications such as Heating Systems, Boilers, Chilled Water Systems, Steam Systems, Pipe Work, Air Conditioning Units etc.
Accuracy class as per DIN EN 13190, range selection should be made with reference to the limit error table available at the follwoing link:
DIN EN 13190 Limit Of Error Table
Suitable For Applications Outside
Product Details
| Temperature Ranges | -30 / +60C, 0-120C |
| Instrument Connection | 3/8" BSP Male |
| Thermowell | 306 Stainless Steel (316 Stainless Steel Optional) |
| Immersion Lenght | 50mm Or 100mm Under Hex |
| Accuracy | Class 2 (DIN 16023) |
| Process Connection | 1/2" BSP Male |
| Mounting | Direct Centre Back (Horizontal) Or Bottom (Vertical) |
| Stem | 316 Stainless Steel |
| Window | Plastic |
| Case | 304 Stainless Steel |
| Bezel | 304 Stainless Steel |
| Measuring Element | Bimetal Helix |
| Dial Size | 100mm |
| Bottom Entry | T100Type13V Supplied With Pocket |
| Back Entry | T100Type13H Supplied With Pocket |
Call us on 0044 (0)1233 730999 for more information |
 |
|
Model: TYPE 12 SERIES |
