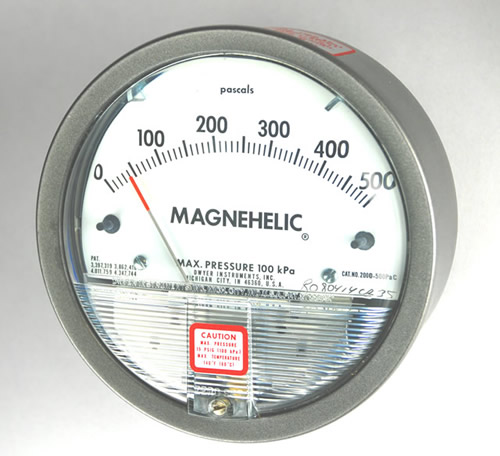

(094) Low Pressure "Magnehelic" Gauge
The Magnehelic gauge features a frictionless movement which allows a fast responce reading for low air and non-combustible & non-corrosive gas pressure. Positive gauge pressure, negative gauge pressure (vacuum) or differential pressure can be measured from the same basic unit which can also be universally mounted. The unique design resists shock, vibration and over-pressure. The Magnehelic gauge is the industry standard to measure fan and blower pressure, filter resistance, air velocity, furnace draft and pressure drop across oriface plates.Product Details
| Model Number: | Magnehelic Series |
| Nominal Sizes: | 101mm |
| Accuracy Class: | +/-2 (2% FSD) |
| Ranges: | 0-1 PSI to 0-30 PSI, 0-60 Pascals to 0-750 Pascals, 0-1 Kilopascals to 0-30 Kilopascals, 0-0.25 Inches Water to 0-150 Inches Water, 0-6 mm Water to 0-100mm Water & 0-15 cm Water to 0-300cm Water, |
| Over-Protection:(Short Period Only) | Relief Plug Opens At 25 PSI |
| Calibration Temp: | 20C |
| Temperature: | Process -6C to +60C (Ambient -20 / +60C) |
| Protection: | IP54 Depending On Configuration |
| Connection: | 2 X 1/8" NPT Female In Rear, 2 X 1/8" NPT Female In Side |
| Measuring Element: | Aluminium With Silicone Rubber Diaphragm |
| Movement: | Jeweled Bearing Shock Resistant Movement With Zero Adjustment. |
| Housing & Bezel: | Die Cast Aluminium With Acrylic Cover. Exterior Finish Is Coated Grey |
| Dial & Pointer: | White Dial / Metal Grey Pointer With Heat Treated Red Tip, High & Low Range Rubber Pointer Stops |
| Window: | Clear Plastic |
| Mounting: | Flush Panel Mount, Surface Mounting or Pipe Mounting (1.25 |
| Options: | Surface Mounting Bracket, Flat Flush Mounting Bracket, 3-Way Vent Valve, Safety Relief Valve, Air Filter Kit, Pipe Mount Kit, Adjustable Signal Flag, Set Point Indicator, |
Call us on 0044 (0)1233 730999 for more information |
 |
|
Model: MAGNEHELIC Series Mounting Flush Panel Mount or Surface Mount, Pipe Mount For Pipe Diameters 1.25" to 2" |
