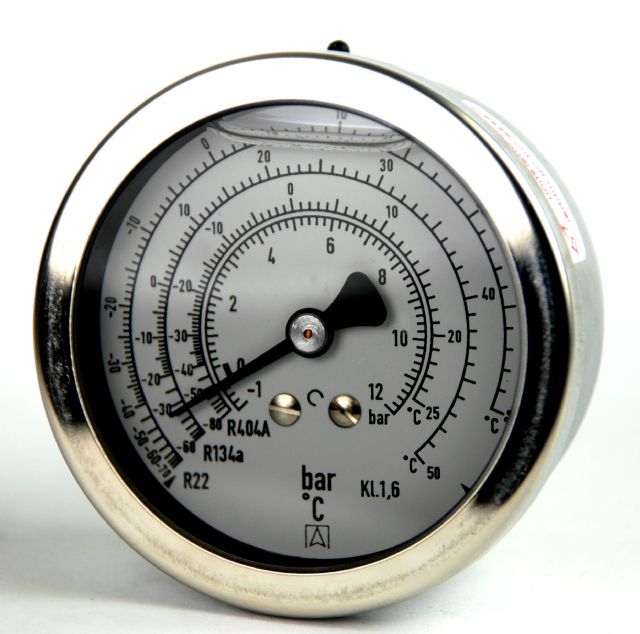

(017) Refrigeration Standard & Differential Pressure Gauge
Ashford Instrumentation can supply a wide range of pressure gauges for refrigeration applications. Standard pressure gauges are available in diameters 63mm, 80mm, 100mm & 160mm and differential pressure gauges can be supplied in diameters 80mm, 100mm & 160mm with refrigerant scales. Our refrigeration scale pressure gauges feature temperature compensation ensuring an accurate reading even on applications with rapidly fluctuating ambient temperatures.
Product Details
| Model Number: | 100BD401REF Series |
| Nominal Sizes: | Standard Gauge - 80mm, 100mm & 160mm, Differential & Duplex Gauges 80mm, 100mm & 160mm. |
| Accuracy Class: | 1 (1% FSD) |
| Ranges: | -1/+12 Bar or -1/+25 Bar (Refrigeration Media R22, R134a, R404, R507, Ammonia R717 |
| Calibration Temperature: | 20C |
| ProcessTemperature: | Maximum 60C |
| Protection: | Generall IP65 (Depending On Final Specification) |
| Connection: | 1/4", 3/8" or 1/2" BSP or NPT |
| Measuring Element: | 316 Stainless Steel, Brass Or Bronze |
| Movement: | 316 Stainless Steel |
| Housing & Bezel: | Black Enamel Steel With 316 Stainless Steel Bezel, (316 Stainless Steel Case Optional On 100mm Version) |
| Dial & Pointer: | Aluminium |
| Window: | Actylic |
| Mounting: | Direct Mount Bottom or Back Entry, Surface Mount 3-Hole Back Flange. Panel Mount 3-Hole Front Flange or Panel Mount Clamp Fixing. |
| Options: | Custom Dials, Glycerine Filled Case |
Call us on 0044 (0)1233 730999 for more information |
 |
|
