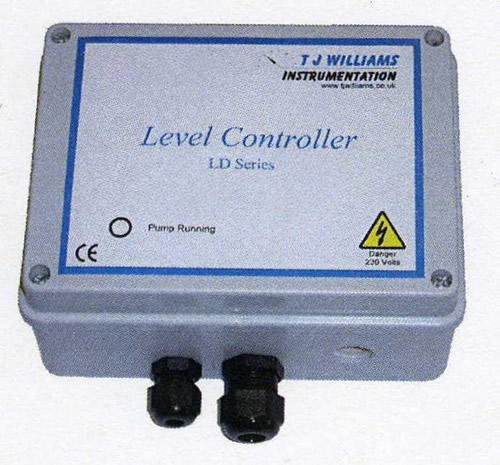

(005) Tank Monitoring System Pump Controller
The TMSPC01 level controller provides an effective control of two levels and is mostly used in diesel oil or water storage tanks. The systems comprises of a surface mounting control box and two seperate float switches which give highly reliable level control. The unit is mains powered and features volt free changeover contacts which can control, for example, high level in two seperate tanks or high and low level in a single tank.Product Details
| Application | Two Input Pump Controller For Level Control |
| Power Supply | 230V, 110V or 24 V (Specify When Ordering) |
| Maximum Switching | 10V |
| Enclosure | Weatherproof IP54 Grey Plastic |
| Dimensions | 158mm X 115mm X 75mm Deep |
| Temperature Range | Ambient -10 / +50C |
| Electrical Connection | 1 X 16mm & 1 X 20mm Cable Gland |
| Weight | 0.5Kg |
| Float Switches | Supplied WIth 2 X Float Switches For High/High Or High/Low Switching. Switches Suitable For Diesel Oil Or Water |
Call us on 0044 (0)1233 730999 for more information |
 |
|
Model: TMSPC01 |
