(004A) Pipe Clip Thermometer For Lagged Pipe

The Ashford Instrumentation 80mm or 100mm diameter pipe clip thermometer is designed for pipe diameters up to 60mm where an immersion design thermometer can not be used. This thermometer can be manufactured with a variety of extension pieces to allow for lagging material up to 100mm deep. The thermometer is supported by a base unit which is held against the pipe by a hose clamp, both these components are supplied with the thermometer as a complete unit.

Product Details

Model Number: 80mm - T80Type98EXT, 100mm - T100Type98EXT
Nominal Sizes: 80mm & 100mm
Accuracy Class: Class 1 EN 13190
Ranges: Standard Ranges -20/+40C, 0-60C, 0-120C, 0-160C
Connection: Hose Clamp For Pipe Diameters Up To 60mm
Measuring Element: Bi-Metallic Strip In 8mm Diameter Brass Stem
Movement: Stainless Steel
Housing & Bezel: 304 Stainless Steel
Dial & Pointer: Aluminium
Window: Instrument Glass
Mounting: Direct Mount Back Entry. Base Unit Held To Pipe With Hose Clamp
Options: Lagging Extension 55mm, 75mm, 95mm 0r 115mm
Hose Clamps 27 to 42mm or 42 to 66mm
Zero Adjustment Located On Rear Of Case

Call us on 0044 (0)1233 730999 for more information
on this product and to order

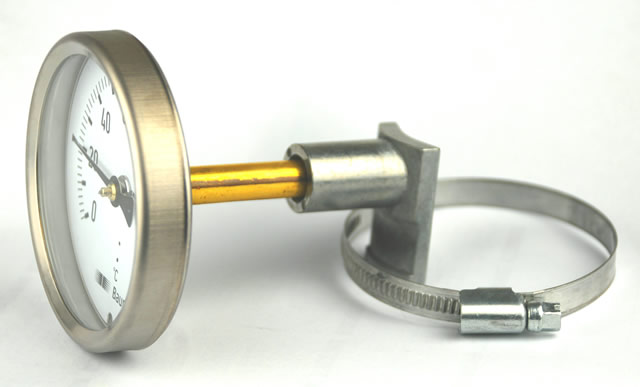

(1) Lagging Pipe Clip Thermometer
80mm & 100mm Diameter Pipe Clip Thermometer For lagged Pipes
