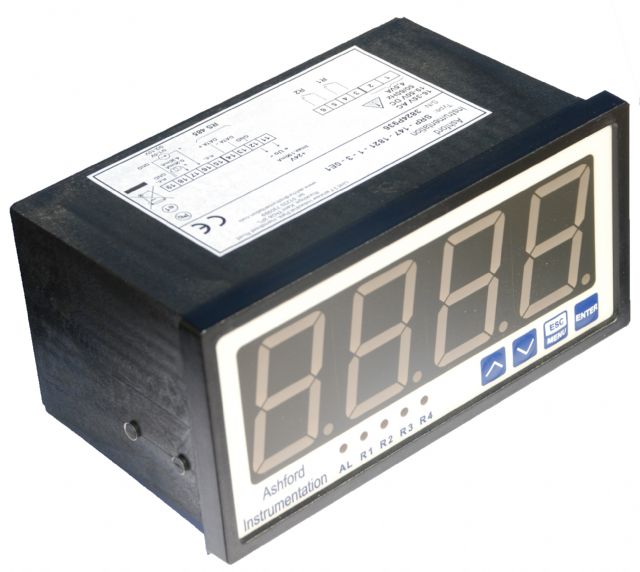

(804) 4 Digit Display 144 X 72 X 100mm
Exclusive to Ashford Instrumentation, this easy to read panel mount 4-LED digit display with programmable measuring range features 32mm high digits in a 144 X 72mm display.
Product Details
| Model Number | DMS991 |
| Power Supply | 19V-50VDC |
| Display | 4 X Red LED With 38mm High Digits |
| Current Input | 0-20mA or 4-20mA Programmable |
| Display Values Range | -999 to 9999 |
| Accuracy | +/- 0.25% +/- One Digit |
| Outputs | 2 Relays 1A/250V |
| Communication Interface | RS-485, Modbus RTU |
| Transducer Power Supply Output | 24V DC |
| Operating Temperature | 0-50C |
| Ingress Protection | IP40 Standard (IP65 Optional) |
| Case Material | NORYL-GFN2S E1 |
| Panel Cut Out Size | 138.5 X 67mm |
| Case Dimensions | 144 X 72 X 124mm |
| Installation Depth | 102mm |
| Mounting Board Thickness | 5mm |
Call us on 0044 (0)1233 730999 for more information |
 |
|
 |
|

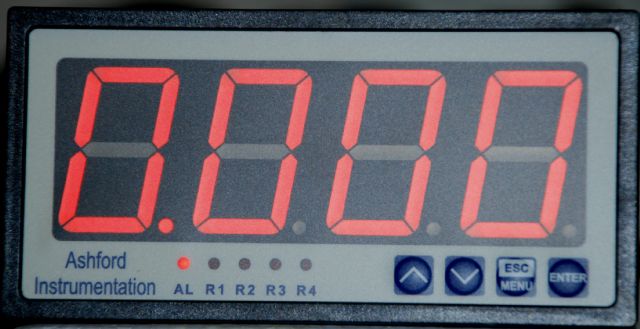

Model DMS991 38mm High Digits |
