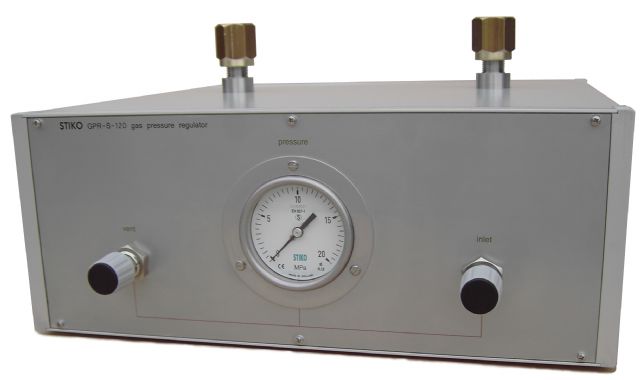

Pneumatic Comparitor Regulator for the calibration of pressure gauges or pressure transmitters using bottled gas or air (we suggest Nitrogen) to a maximum pressure of 120 bar. The regulator features 2 ports, one for the gauge on test the other for the master test equipment, inlet and outlet valves and two fine metering valves for close control.
This equipment needs to be used in conjunction with a master test gauge or precision pressure transmitter.
|Maximum Inlet Pressure||200 Bar|
|Maximum Calibrating Pressure||120 Bar|
|Mounting||Designed For Bench Mounting|
|Pressure Control||Front Mounted Inlet & Vent Fine Metering Valves|
|Instrument Connections||3/8" BSP Left Hand Thread|
|Instrument Adaptors||1/8", 1/4", 3/8" or 1/2" BSP Supplied (NPT Optional)|
|Inlet Connection||1/4" BSP Female With 12.15 Minimess Adaptor|
|Inlet Pressure Monitoring||Front Mounted 160 Bar 63mm Diameter Pressure Gauge|
|Dimensions||340mm Wide X 180mm High X 360mm Deep|
