(100) Syphons
Syphons are used in the heating & ventilation industry as a low cost solution to protect pressure gauges from the effects of hot process media such as steam.

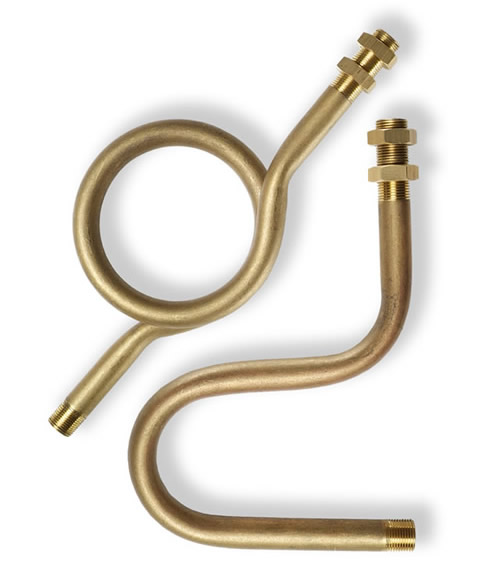

Generally speaking "U" Syphons (or Swan Kneck Syphons) are used for pressure tappings on the side of the pipe or vessel and "Ring" Syphons (or Pig Tail Syphons) where the tapping is located at the top.
When first installed, the syphon should be filled with water or any other suitable separating fluid.
Product Details
| Materials | Mild Steel, Brass, 304 Stainless Steel or 316 Stainless Steel |
| Process Connection | 3/8" or 1/2" BSP Male / Male |
| Design | "U" (Swan Kneck) Design For Horizontal Process Connection, "Ring" (Pig Tail) Design For Vertical Process Connections. |
| Locking Nuts | Supplied As Standard |
| Maximum Pressure | 40 Bar |
| Maximum Temperature | 200 Deg C |
Call us on 0044 (0)1233 730999 for more information |
 |
|
Materials of construction include: Brass Mild Steel 304 Stainless Steel 316 Stainless Steel |
