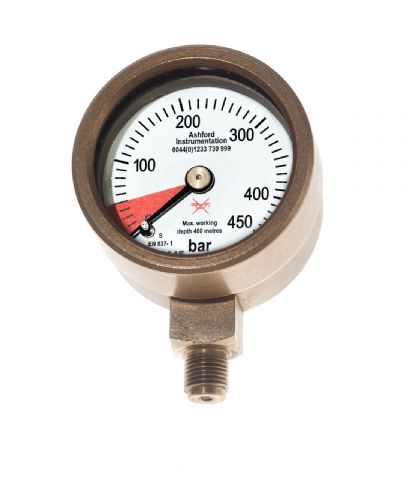

(200) 50mm Bail Out Subsea Gauge For Diver Tank Contents Measurement
The Ashford Instrumentation Ltd 50mm Diver “Bail Out” Subsea Gauge for breathing tank contents measurement offers some significant advantages over its nearest rivals.
Ø Decreased / Oil Free For Gas Use
Ø Selection Of Thread Connections To Suit Hose
Ø Marine Bronze Case For maximum Corrosion Resistance
Ø Toughened Float Glass Window
Ø Removable Bezel For Serviceability
Ø Individual Serial Numbered For Traceability
Ø Satisfies The Requirements of EN837-1 "S2"
Product Details
| Model Number | DMS500 Series |
| Diameter | Nominal 50mm |
| Pressure Range | 0-450 Bar Standard (Others On Request) |
| Accuracy | Class 2.5 (2.5% FSD) |
| Mounting | Direct Mount Bottom Connection |
| Connection | Marine Bronze 1/8" BSP Male As Standard, No Spigot, Restrictor Screw Fitted (Others On Request) |
| Case | Marine Alloy Bronze AB2, Dry Case |
| Bezel | Removalble Marine Alloy Bronze AB2 |
| Bourdon Tube | 316 Stainless Steel / Phosphor Bronze |
| Window | 10mm Toughened Float Glass |
| Safety Device | Blow Out Device In Top Of Case |
| Cleaning | Degreased For Oil Free Applications |
| Maximum Working Depth | 400m |
| Dial & Pointer | White Luminous Dial With Black Markings, Black Pointer |
| Dial Markings | Oxygen, Crossed Oil Can, EN837-1, Accuracy Class, Serial Number, Manufacturers Name, Maximum Working Depth, Red Sector 0-50 Bar "S" |
| Optional Documentation | Point To Point Calibration Certificate, 3.1b Material Certification, |

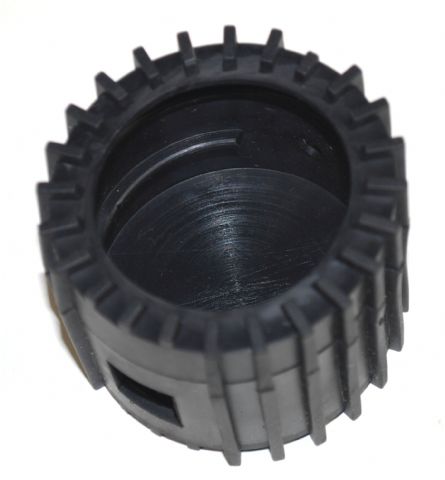

| Options | Black Rubber Cover, Bail Out Hose |
Call us on 0044 (0)1233 730999 for more information |
 |
|
 |
|
50mm "Bail Out" Subsea Pressure Gauge For Tank Contents Measurement |
