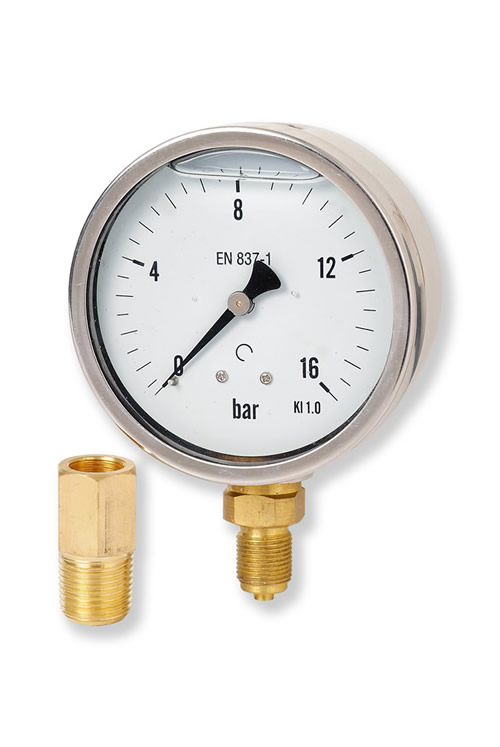

(007) 100mm Sprinkler Gauge
100mm diameter bourdon tube pressure gauge designed for the Fire Sprinkler Market. These instruments are suitable for all gaseous and liquid media that are not highly viscous and that will not solidify, crystallize, attack or corrode brass. This gauge is designed for applications according to the European Standard EN837-1.
Available Ex-Stock
Product Details
| Model Number: | 100BG701E(SPRINKLER) |
| Nominal Sizes: | 100mm |
| Accuracy Class: | 1.0 (1.0% FSD) |
| Ranges: | 0-16 Bar (0-20 Bar Optional) |
| Working Pressure: | Static Load 75% Scale |
| Calibration Temp: | 20C |
| Process Temperature: | Maximum 60C |
| Protection: | IP65 |
| Liquid Filling | Glycerine Filled, 95% Fill |
| Connection: | 3/8" BSP Standard, 1/2" BSP Optionally Available |
| Case & Bezel | 304 Stainless Steel |
| Wetted Parts | Brass |
| Dial & Pointer: | Aluminium |
| Window: | Plastic |
| Mounting: | Direct Mount Bottom |
| Options: | Customers Logo or Name On Dial (Quantity Dependent) |
| Documentation | Optional Calibration Certification |
Call us on 0044 (0)1233 730999 for more information |
 |
|
3/8" BSP Fire Sprinkler Gauges can be supplied with Brass No-Loss Connectors. These one-way valves allow the pressure gauge to be safely removed without having to drain down the system. The No-Loss Connector is supplied with instrument sealing washer 1/2" BSPT male process connection. |
