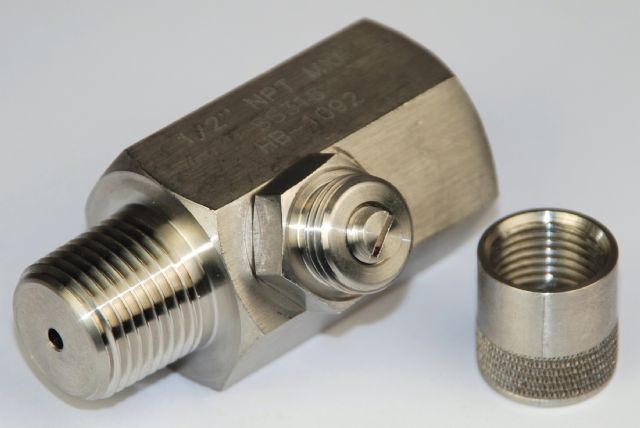

(110) Adjustable Pressure Snubber
Snubbers are used to dampen and improve pressure gauge readings by suppressing the effects of pulsation and pressure peaks in the pressure line. The body is machined from 316 stainless steel bar stock and supplied with an adjustable internal screw to restrict the flow of the process media. A suitably located snubber will significantly increase the life of a pressure gauge on arduous applications such as reciprocating pumps and copmpressors, hydraulic presses or fluid power systems. The adjustment screw is protected from dust and dirt by a stainless steel screwed cap.Product Details
| Model Number | SNUBBER002 |
| Material | 316 Stainless Steel Standard, Monel & Hastelloy Optional |
| Process Connections | 1/4", 3/8" and 1/2" BSP or NPT |
| Maximum Pressure | 280 Bar |
| Orientation | Male / Female |
| Adjustment | Side Screw With Protective Cap |
Call us on 0044 (0)1233 730999 for more information |
 |
