(950) Liquid & Air Variable Area Flowmeters

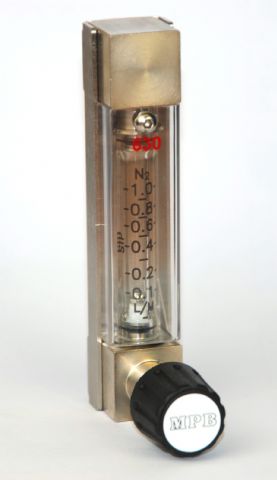

VAF83 & VAF120 Series Variable Area Flow Meters are suitable for measuring the instantaneous flow rate of virtually any process liquid or gas. The principle of operation of the variable area flow meter is simple: the height attained by the float in its tapered flow tube is directly related to the flow rate which is exhibited by a calibrated scale. Readings should always be taken from the centre of the ball.

• Low Flow Rates From 2-20cc/min (Air)
• Direct Reading of Instantaneous Flow Rates
• Easy To Read Scale
• 56mm or 93mm Tube Lengths
• Minimal Maintenance
• Long Service Life

Typical applications include gas flow control, dosing systems, purge metering, leak detection, blending systems & analytical instrumentation.

Standard Ranges VAF 83 Series (20C at 1013mb abs)

AIR:   2-20, 5-50, 10-100, 25-250, 50-500 cc/min    0.1-1.0,  0.2-2.5,  0.5-5.0,  1-10,  2-10 L/min

WATER: 5-50, 10-100,  25-250,  50-500 cc/min

Standard Ranges VAF 120 Series (20C at 1013 mb abs)

AIR:    25-250, 50-500, 100-1000 cc/min     0.5-5.0,  1-10,  2.5-25,  4-40 L/min

WATER: 5-50, 10-100,  25-250,  60-600, 100-1000 cc/min
