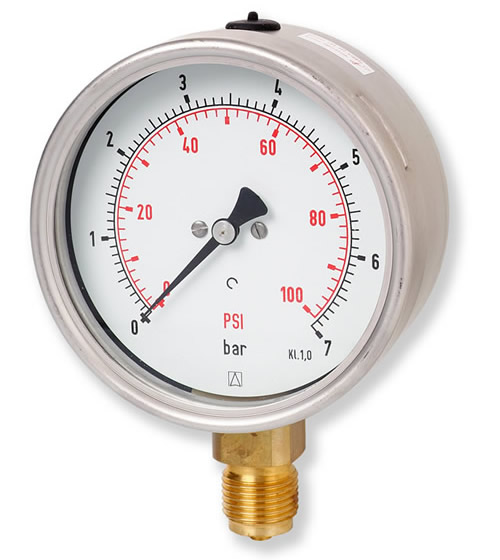

(009) 100mm & 160mm HD Series Pressure Gauge
100mm & 160mm diameter class 1 bourdon tube pressure gauge designed for industrial and process applications where brass wetted parts are suitable. These instruments are suitable for all gaseous and liquid media that are not highly viscous and that will not solidify, crystallize, attack or corrode brass. This gauge is designed for applications according to the European Standard EN837-1.
Generally Available Ex-Stock
Product Details

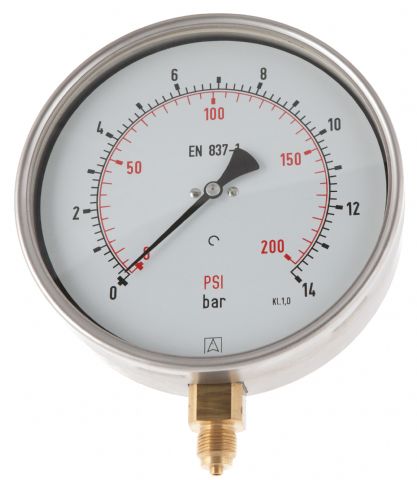

| Model Number: | 100mm - 100BD401 & 160mm - 160BD401 Series |
| Nominal Sizes: | 100mm & 160mm Diameter |
| Accuracy Class: | 1.0 (1.0% FSD) |
| Ranges: | All Standard Ranges From -1 Bar (-30"Hg) Vacuum to 1000 Bar / 15000 PSI |
| Working Pressure: | Full Scale Reading For Ranges Up To 600 Bar (75% Scale On Ranges Above 600 Bar) |
| Over-Protection:(Short Period Only) | 1.3 Maximum Scale Value For Ranges Up To 600 Bar (Full Scale Value Only On Ranges Above 600 Bar) |
| Calibration Temperature: | 20C |
| ProcessTemperature: | Maximum 60C |
| Protection: | IP65 |
| Connection: | 3/8" BSP, 1/2" BSP or 1/2" NPT Available Ex-Stock (Others Ex-Works) |
| Case & Bezel | 304 Stainless Steel |
| Wetted Parts | Brass |
| Movement | Brass |
| Dial & Pointer: | Aluminium |
| Window: | Safety Glass (Plastic Optional) |
| Mounting: | Direct Mount Bottom or Back Entry, Panel Mount 3-Hole Front Flange or Clamp Fixing, Surface Mount 3-Hole Back Flange. |
| Options: | Glycerine Filled Case |
Call us on 0044 (0)1233 730999 for more information |
 |
|
 |
|
100mm & 160mm Diameter Glycerine Filled Industrial Pressure Gauges |
