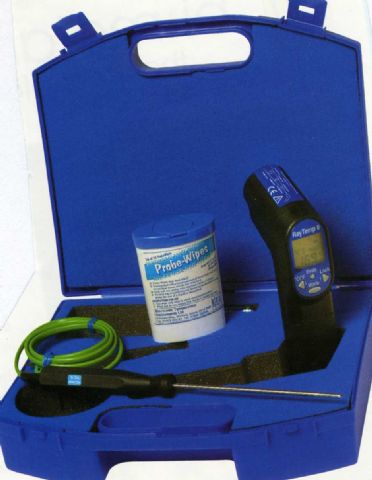

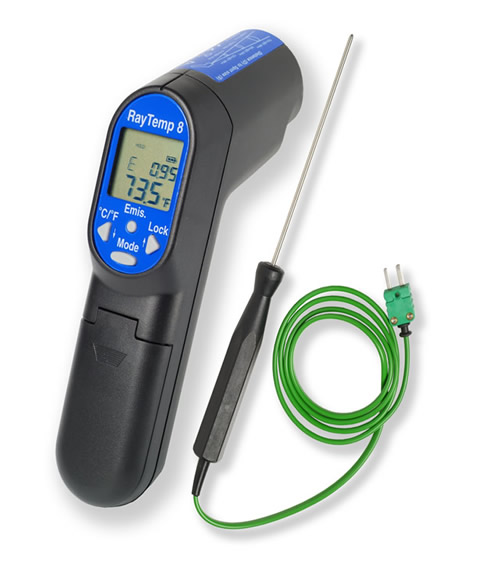

The RayTemp 8 portable gun shaped thermometer is a 2 in 1 hand held instrument featuring infra red non-contact temperature measurement as well as a plug-in type K thermocouple probe supplied in a carry case complete with anti-bacterial probe-wipes.
For Infrared non contact measurement the instrument features a laser dot for easy alignment. Lightweight and compact, simply aim and pull the trigger to display the temperature of the target on the large LCD display. Auto power off facility that turns the instrument off after 60 seconds maximises battery life.
For use with a type K thermocouple, the RayTemp8 incorporates a miniature socket that enables a wide range of thermocouple probe designs to be used. The kit comes complete with a penetration design probe, optionally surface temperature or air probes as also available.
| Model | RayTemp 8 Kit |
| Display | LCD |
| Infrared Accuracy | +/- 2% Reading of +/-2C Whichever Greater |
| Dimensions | 39 X 72 X 175mm |
| Battery Life | 180 Hours Continuous Use |
| Battery | 2 x MN2400 (AAA) |
| Emissivity | 0.95 Default - Adjustable 0.10 to 1.0 |
| Thermocouple Connection | Miniature Socket |
| Probe Accuracy | +/- 1% Reading or 1C Whichever Greater |
| Resolution | 0.1C Between -10 / +200C (1C Outside This Band) |
| Probe Range | -63.9 to +1369C |
| Infrared Range | -59.9 tp +499.9C |
| Field Of View (Infrared) | Target Ratio 11:1 |
| Probe | Penetration Probe |
| Case | ABS Carry Case |
| Cleaning Wipes | Tub Of 70 Anti-Bacterial |
| Weight | 180 Grams |
Call us on 0044 (0)1233 730999 for more information |
Options Include: Wide Range Of Plug In Type K Thermocouples Protective PVC Pouch Carrying Case Calibration Certificate |
