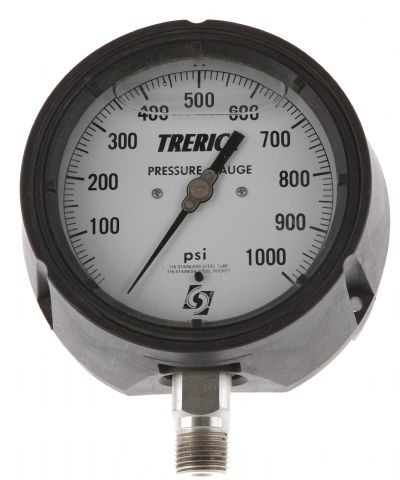

(021) 5" Process Style Turret Gauge
Nominal 5" diameter full safety pattern design bourdon tube pressure gauge designed for process applications where 316 stainless steel wetted parts are suitable. These instruments are suitable for all gaseous and liquid media that are not highly viscous and that will not solidify, crystallize, attack or corrode stainless steel. Case material PP-GFD20 (close to Phenol but more stable) with build in surface mount 3-hole back flange 12.5mm spacer lugs.
Product Details
| Model Number: | 130BG102 Series |
| Nominal Sizes: | Nominal 5" |
| Accuracy Class: | Grade 2A To ANSI B 40.1 (Corresponds To 0.5%) |
| Ranges: | Standard Ranges Between 0.6 to 1000 Bar |
| Working Pressure: | Static Load Max. Scale Value (Fluctuating Load 90% Scale Value) |
| Over-Protection:(Short Period Only) | 1.3 Maximum Scale Value For Ranges Up To 600 Bar (Full Scale Value Only On Ranges Above 600 Bar) |
| Calibration Temp: | 20C |
| Temperature: | Medium +100C (Ambient -40 / + 65C) |
| Protection: | IP65 |
| Connection: | 1/2" BSP (Others On Request) |
| Measuring Element: | 316 Ti (1.4571) Stainless Steel |
| Movement: | Stainless Steel |
| Housing & Bezel: | PP-GF20 (Phenol), Internal Solid Baffle Wall, Blow Out Back, Screwed Bezel. |
| Dial & Pointer: | Aluminium, Micro Adjustable Pointer |
| Window: | Plastic (PMMA) |
| Mounting: | Universal Direct Mount Bottom or Back Entry, Surface Mount 3-Hole Back Flange (With 12.5mm Lugs) As Part Of Integral Case. |
| Options: | See Opposite |
| Mounting Hole | 137mm PCD - Hole Diameter 6mmm |
| Case Filling | Glycerine Filled As Standard |
Call us on 0044 (0)1233 730999 for more information |
 |
|
Optional Extras Include: Copper Alloy or Monel Wetted Parts Laminated Safety Glass Window Throttle Screw Dry Case (Non-Filled) Special Scales Reference Pointer Maximum Indicator Pointer Elecrical Alarm Contacts |
