Caisson Gauge - 160mm Stainless Steel Case Premium Design

160mm diameter premium design caisson pressure gauge for mounting inside hyperbaric chambers, caissons, living chambers & decompression chambers; used for measuring the simulated depth (pressure) inside the chamber or used to measure the pressure within a pressure system operating inside the chamber.

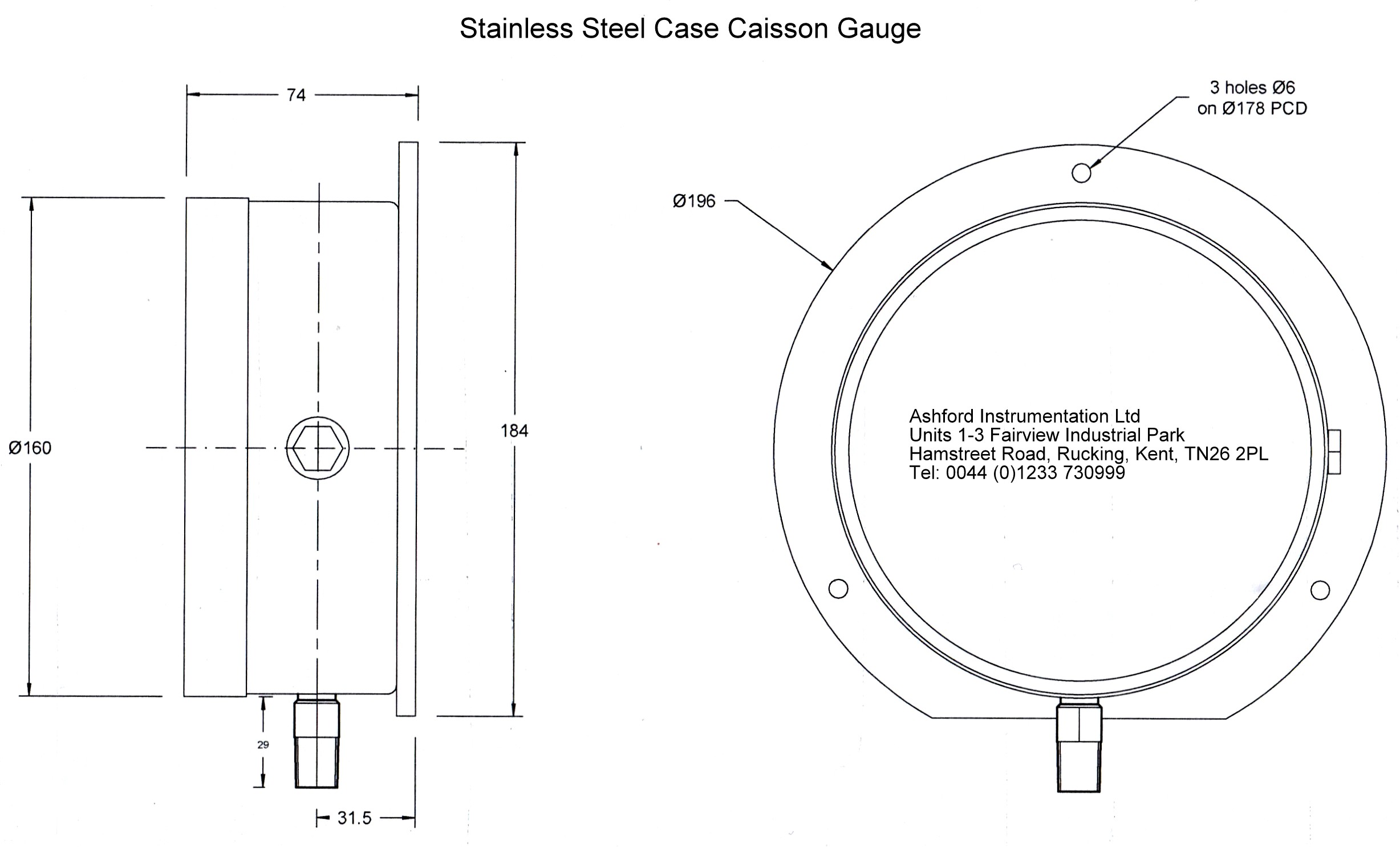

The gauge is designed to be surface mounted (with bottom connection) within the chamber and is constructed around the workings of a conventional bourdon tube pressure gauge. This design allows the instrument to be bench calibrated in a similar fashion to other oxygen cleaned bourdon tube pressure gauges.

This premium design caisson gauge features a large internally sealed pressure reference chamber. This design of caisson gauge is supplied with a 1/4" NPT male process connection (alternative connections available) which is left open to the atmosphere within the chamber when chamber pressure is to be measured.

Alternatively connection can be made to a separate pressure system within the chamber such as bottled gas or hydraulic lines etc if the pressure within these systems needs to be monitored. As an alternative to the 1/4" NPT Male thread, this gauge can be supplied with a 1/4" female thread recessed into the case for improved aesthetics if required.

This gauge also features zero adjustment of the pointer through the front window as standard and can be constructed with a side mounted balance valve to refresh the internal reference chamber if required. Please note that this gauge is calibrated to sea water with a specific gravity of 1.025 unless specified otherwise.

This gauge conforms to the IMCA (International Marine Contractors Association) Diving Division Detailed Sheet Number 18 as per the IMCA Code of Practice on The Initial & Periodic Examination, Testing & Certification of Diving Plant & Equipment.
