3-Way Stainless Steel Ball Valve

The Ashford Instrumentation 3-Way Stainless Steel Ball Valve is available as a two way L-Port or three way T-Port design.

The two way L-Port design will always mean that one port is permanently closed and flow directly across the valve is not possible.

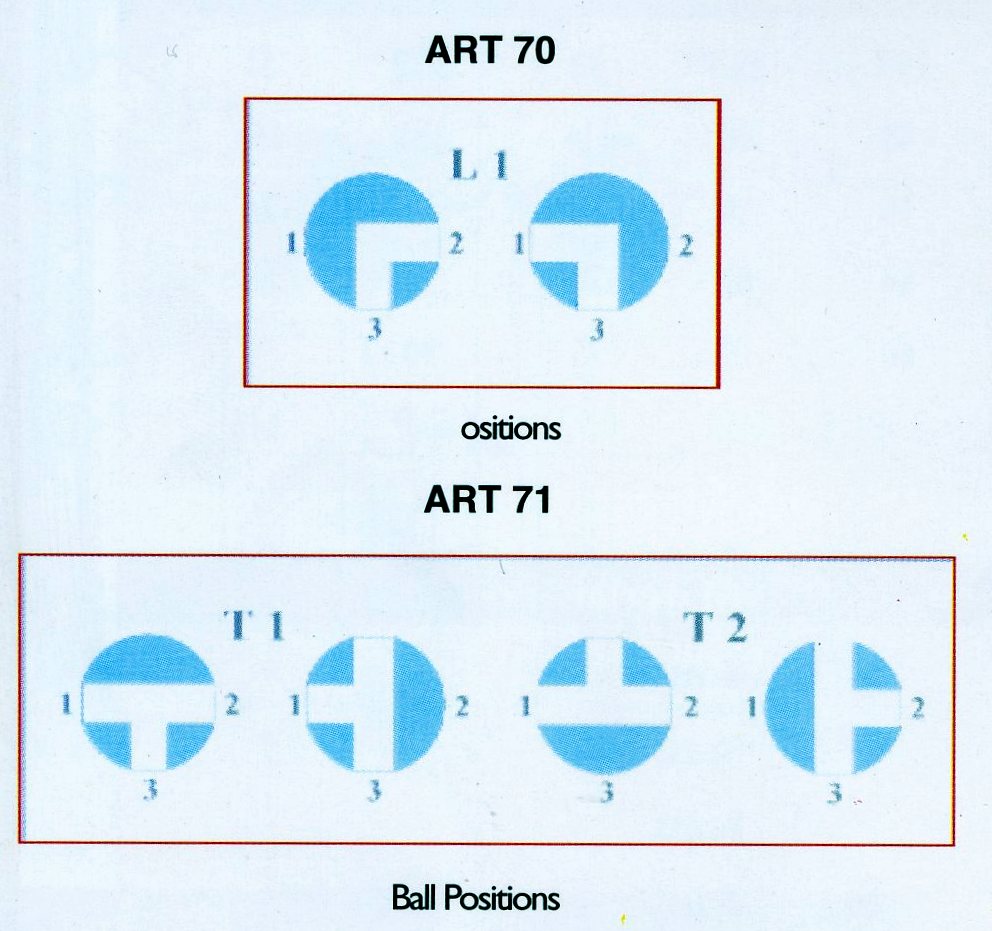

The three way T-Port design allows all three ports to be open simultaneously as well as options to connect any two of the three ports with any third port closed. This is explained on the attached drawing detailing the flow positions available.

A 3-way brass ball valve is also available.
