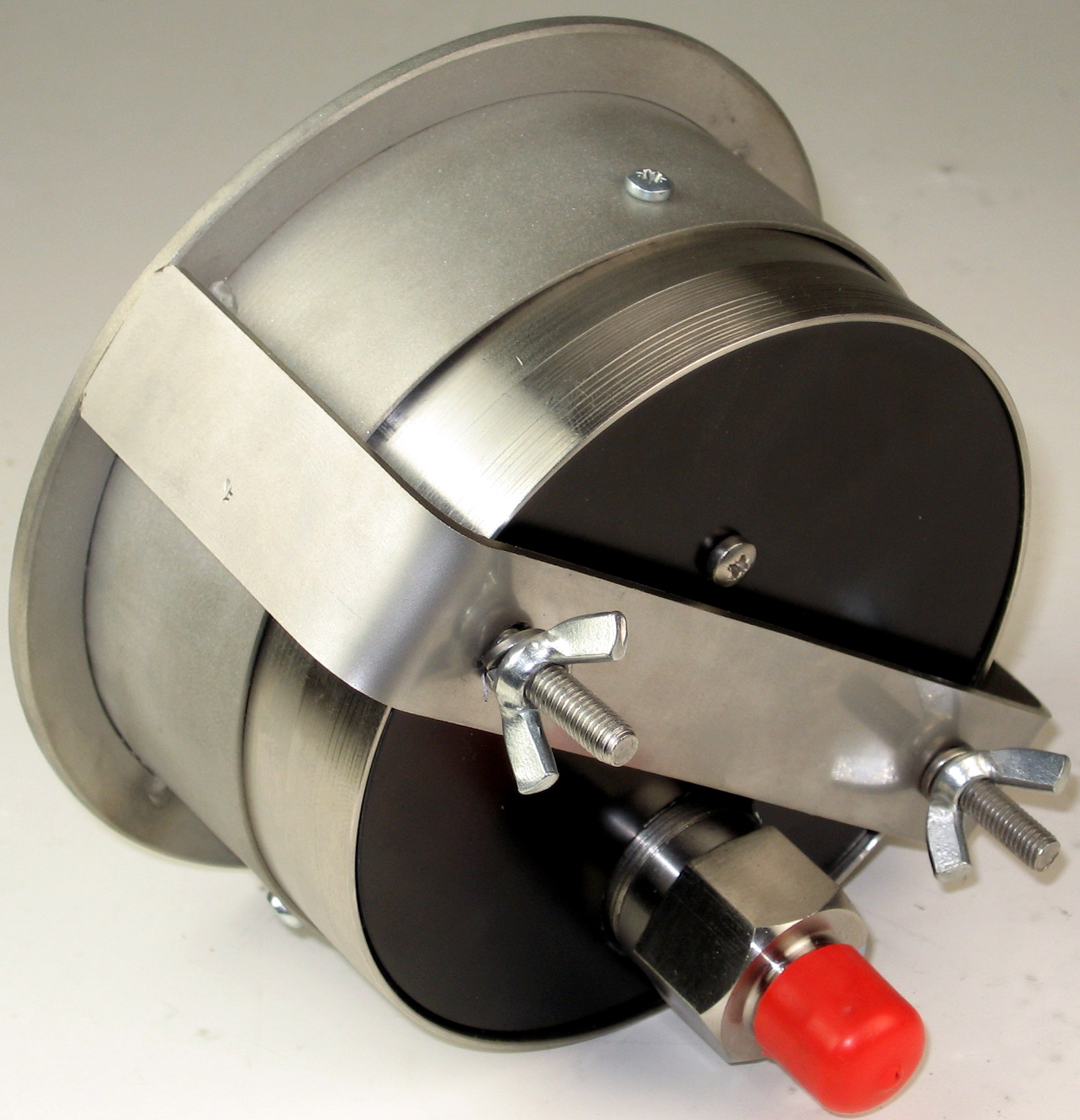

Photo Of Rear Of Case





100mm Oxygen "S3" Full Safety Pattern Diver Panel Gauge - Panel Mount Clamp Fixing

100mm oxygen use full safety pattern bourdon tube pressure guage designed for commercial diving companies operating within Europe wishing to comply fully with all the the safety guidelines of the European Standards EN 837 - 1 relating to pressure gauges for use on all oxygen applications and general air/gas applications above 25 bar. The design of this gauge is panel mounted via a narrow rim bezel and rear panel clamp that does not restrict the safety element of the blow out back

This gauge conforms to the IMCA (International Marine Contractors Association) Diving Division Detailed Sheet Number 19 LIfe Support Gauges as per the IMCA Code of Practice on The Initial & Periodic Examination, Testing & Certification of Diving Plant & Equipment.

These robust instruments are ideal for diver control panels and are fully degreased for oxygen applications. The case is of a full safety pattern design featuring a laminated safety pattern glass window, solid internal baffle wall and blow out back to safeguard the operator in the event of a failure of the pressure chamber.

The bourdon tube design is suitable for all gaseous and liquid media that are not highly viscous and that will not solidify, crystallize, attack or corrode stainless steel.

Technical Note: OXYGEN. IMCA D 022 Rev 1 (May 2014) Chapter 9 Gas Handling Section 9.6 notes that "Any gas mixture containing more than 25% oxygen by volume should be handled like pure oxygen"

63mm version of this gauge are also available, please click here for details.
