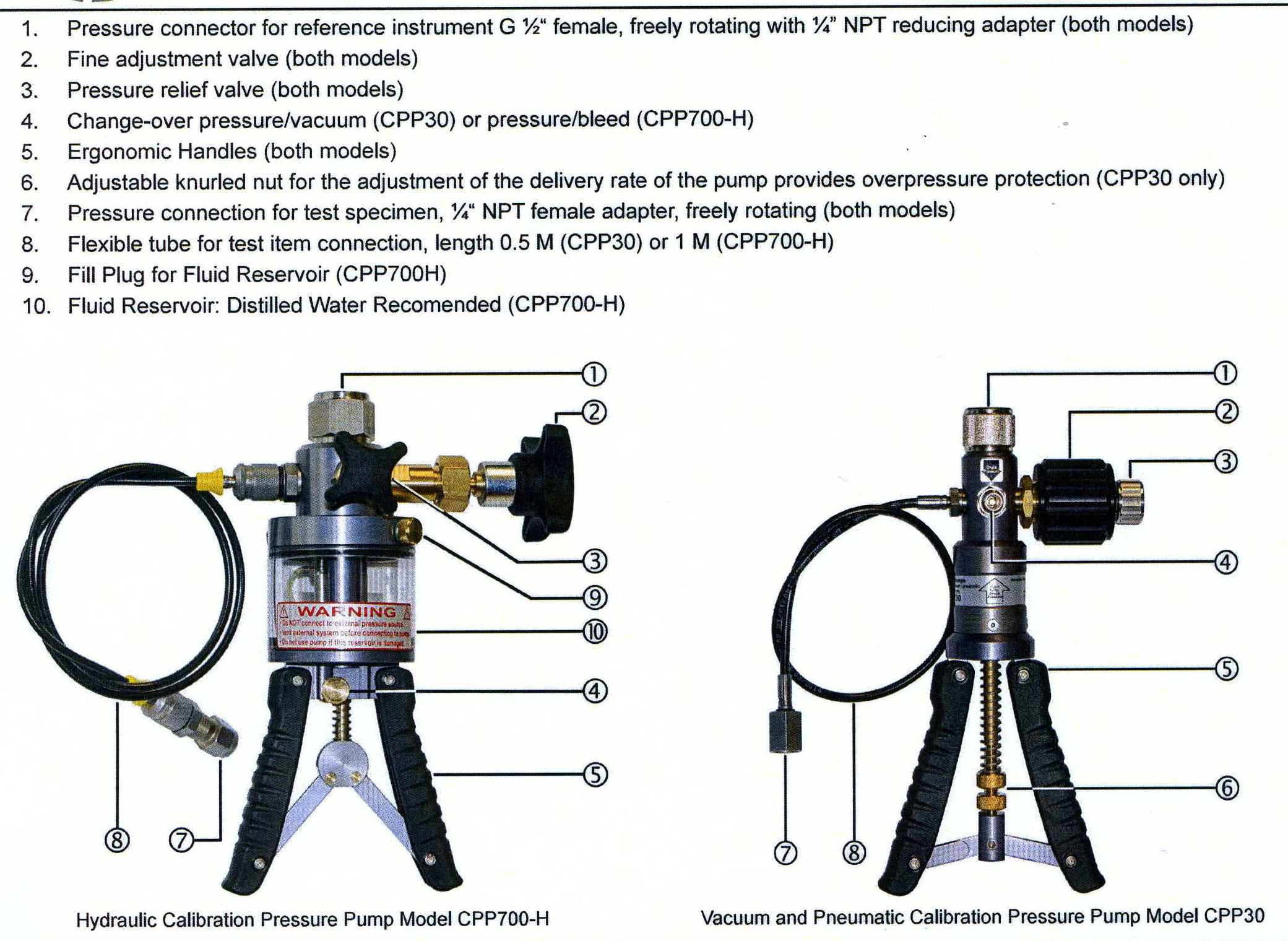

Hand-Held Pneumatic Pressure / Vacuum Test Pumps CPP30

The Ashford Instrumentation CPP30 Pneumatic Hand Operated Test Pump is ideal for testing, adjustment and calibration of all types of pressure measuring instruments in laboratories, workshops or on-site. Special features include ergonomic handling, precise setting of pressure via a fine adjustment valve and compact design.

Despite the compact size, the CPP30 enables simple and accurate test pressure generation up to 500 PSI (35 Bar) and with a press of a change-over switch, vacuum generation down to -13.75 PSI (-950 Millibar) is also possible using the same unit.

The CPP30 can be purchased on its own or as part of a calibration kit comprising all or some of the following:

14124906 - CPP30 Pneumatic Hand Pump

12139786 - Service Kite For CPP30 Pneumatic Hand Pump

12139689 - BSP Fitting Adapters

12140422 - Metric Fitting Adapters

12139701 - NPT Fitting Adapters

12139573 - Plastic Case With Foam Insert 395mm X 293mm X 106mm
