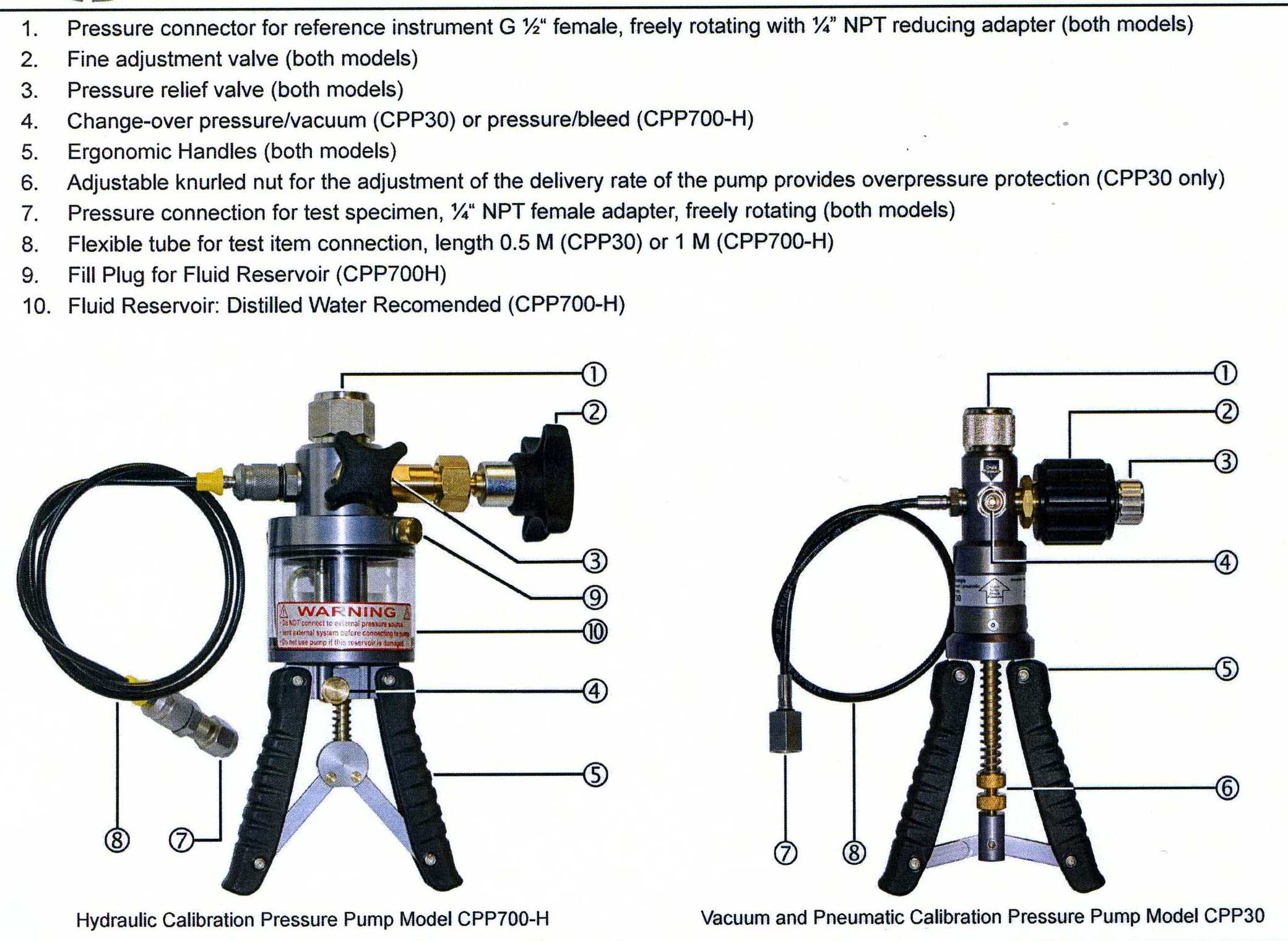

Parts List Drawing





Hand-Held Portable Hydraulic Pressure Test Pumps CPP700-H

The Ashford Instrumentation CPP700-H Hydraulic Hand Operated Test Pump is ideal for testing, adjustment and calibration of all types of pressure measuring instruments in laboratories, workshops or on-site. Special features include ergonomic handling, precise setting of pressure via a fine adjustment valve and compact design.

Despite the compact size, the CPP700-H enables simple and accurate test pressure generation up to 10000 PSI (700 Bar)  using distilled water or clean hydraulic oil as the calibration media.

The CPP30 can be purchased on its own or as part of a calibration kit comprising all or some of the following:

14124909 - CPP700-H Hydraulic Hand Pump

13001442 - Service Kite For CPP700-H Hydraulic Hand Pump

12139689 - BSP Fitting Adapters

12140422 - Metric Fitting Adapters

12139701 - NPT Fitting Adapters

13001965 - Plastic Case With Foam Insert 440mm X 370mm X 140mm
