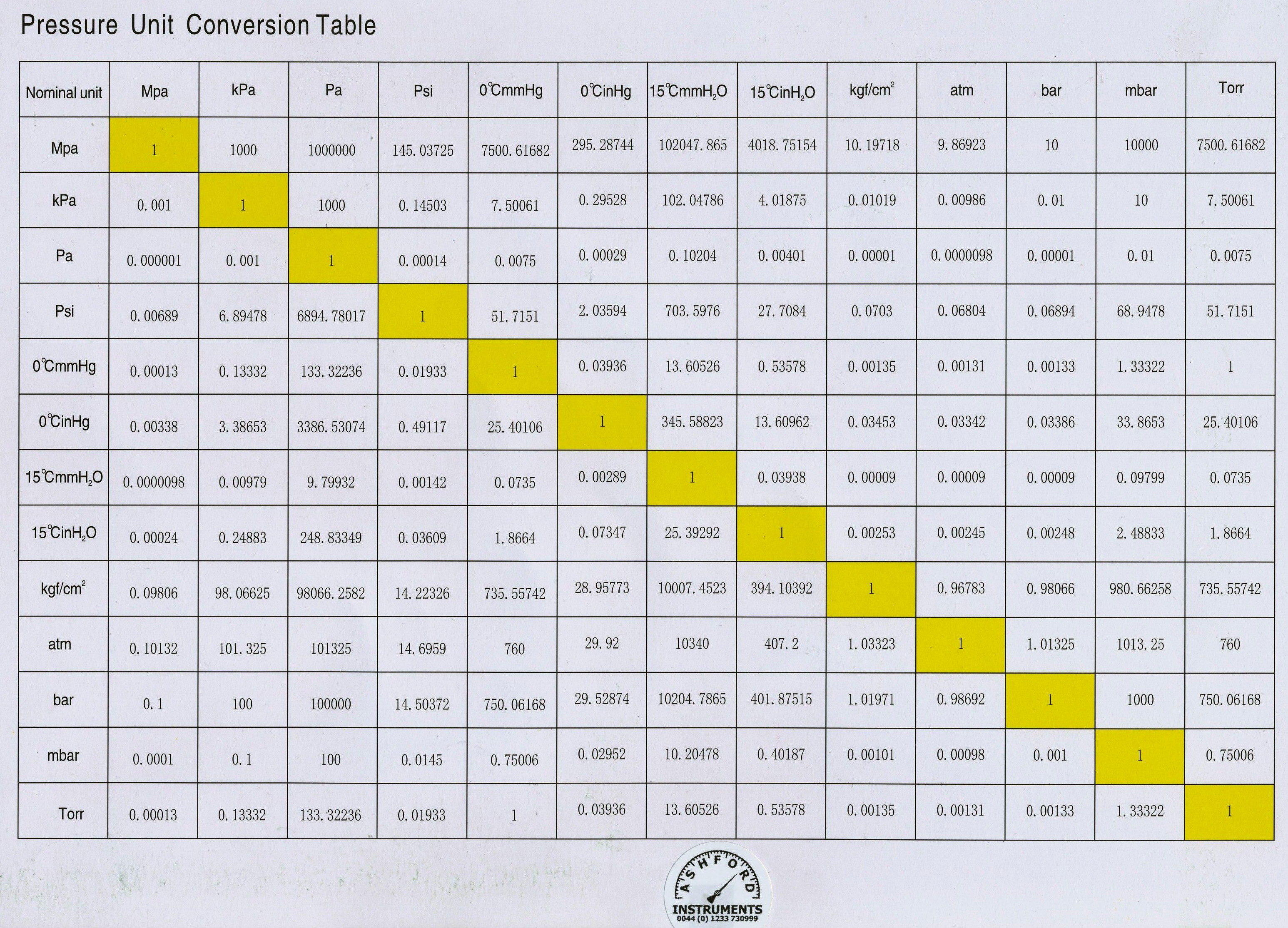

Pressure Conversion Chart
63mm Back Entry & Panel Mount Drawing
63mm Bottom Entry & Surface Mount Drawing



Pressure Gauge - 40mm, 50mm & 63mm All Stainless Steel Pressure Gauge - Rolled Bezel

Ashford Instrumentation offer a range of 40mm, 50mm & 63mm pressure gauges with a 304 stainless steel case and 316 stainless steel wetted parts. The gauge can be supplied with either a rolled/crimped bezel (Model 702) or with a DIN style removeable bayonet lock bezel (Model 402).

This gauge are manufactured wither dry case or glycerine filled and are suitable for  all gaseous and liquid media that are not highly viscous and that will not solidify, crystallize, attack or corrode stainless steel.

This gauge is designed for applications according to the European Standard EN837-1 but please note that only the bayonet bezel design allows for the bezel to be removed allowing access to working mechanism of the gauge to make any repair or adjustment  should this be required.

For details on the 100mm & 160mm diameter version of this gauge, please click here.

PLEASE NOTE SAMPLE PART NUMBERS GIVEN BELOW ARE MODEL 7X2 WITH ROLLED/CRIMPED BEZEL
