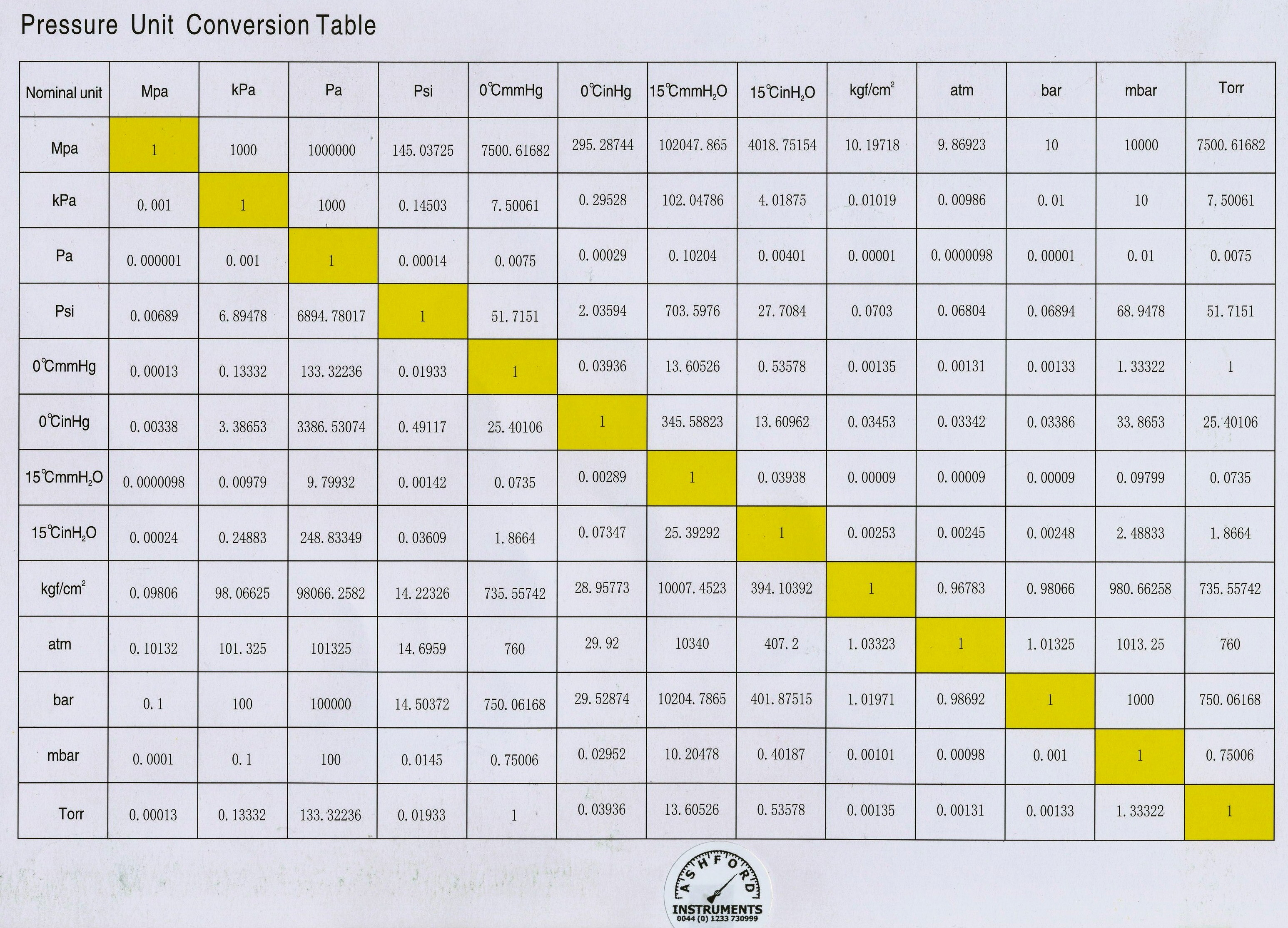

Pressure Conversion Chart
Dimensional Drawing

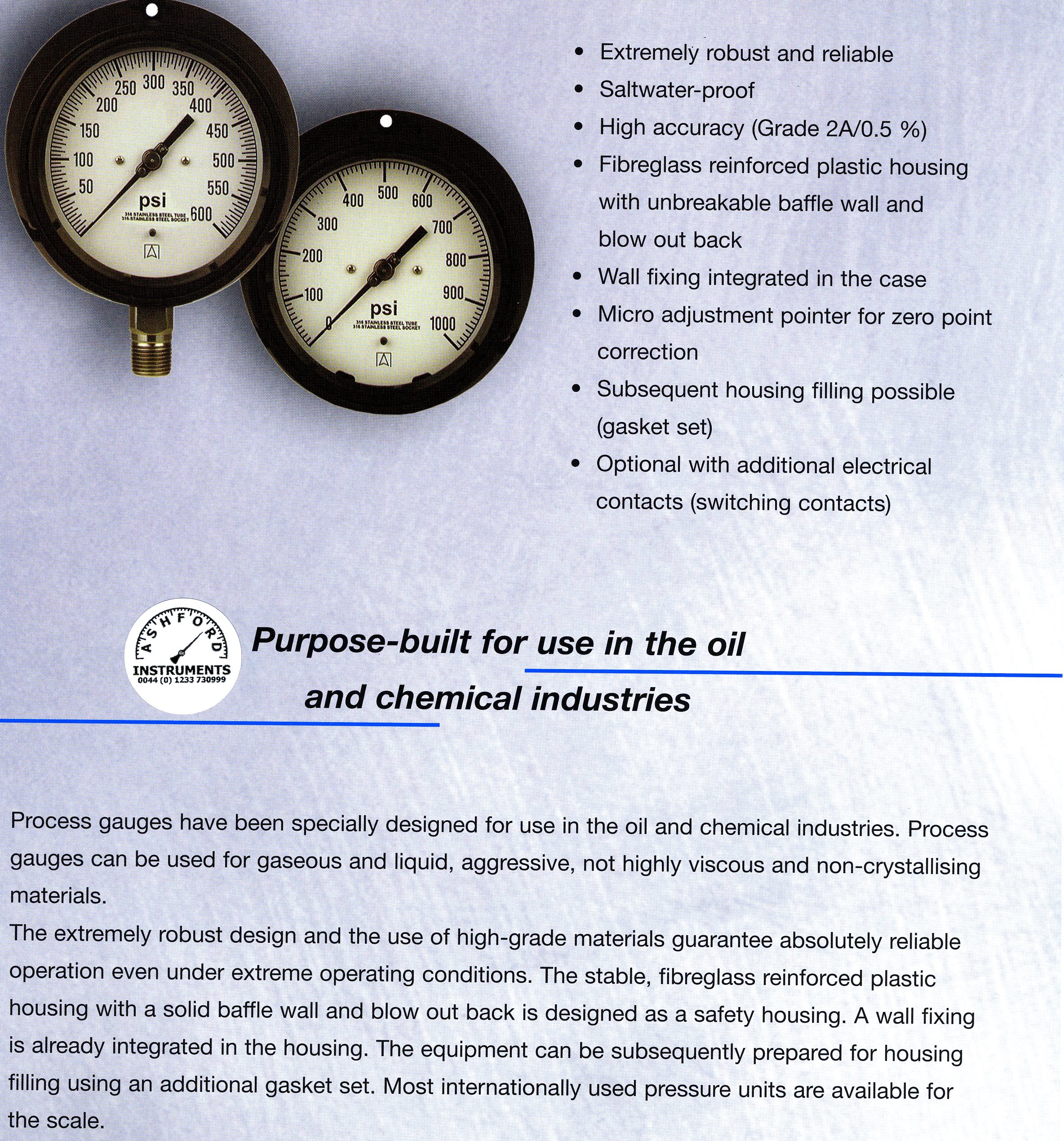

Sales Flyer



Turret Style Pressure Gauge - 4.5" Process Industry Gauge

4.5" turret style process industry gauge is a full safety pattern design bourdon tube pressure gauge designed for process applications where 316 stainless steel wetted parts are required.

These instruments are suitable for all gaseous and liquid media that are not highly viscous and that will not solidify, crystallize, attack or corrode stainless steel.

Case material fiberglass reinforced polyammide with built in surface mount 3-hole back flange 12.5mm spacer lugs. This gauge is calibrated to ASNI B40.1 and is supplied as standard glycerine filled. Mechanically damped movement in place of glycerine filling is optionally available.

For more details on Full Safety Pattern Gauges, click here.

Ashford Instrumentation can also supply a range of process industry valves and manifolds, please click here for details
