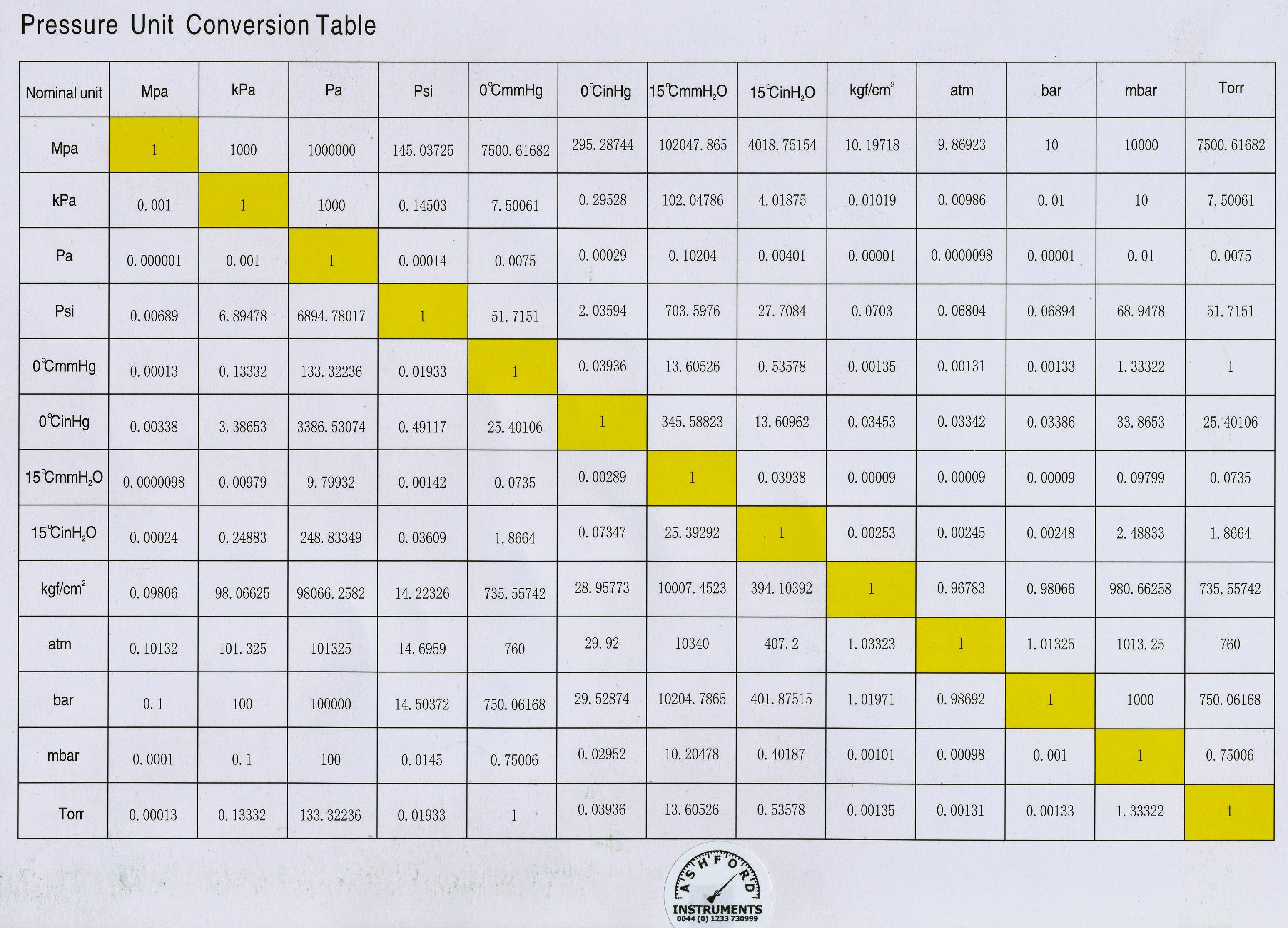

Pressure Conversion Chart
Data Sheet & Drawing




ATEX Pressure Gauge - 63mm, 100mm & 160mm Full Safety Pattern

ATEX certified Zone 1 & Zone 2 safety pattern bourdon tube pressure gauges with diameters 63mm, 100mm and 160mm. Accuracy  class 1 designed to comply fully with all the the safety guidelines of the European Standards EN 837 - 1 relating to pressure gauges for use on all oxygen or acetylene applications and general air/gas/vapour applications above 25 Bar.

The case design features laminated safety pattern glass window, solid internal baffle wall and blow out back to safeguard the operator in the event of a failure of the bourdon tube.

The bourdon tube design is suitable for all gaseous and liquid media that are not highly viscous and that will not solidify, crystallize, attack or corrode stainless steel.

For more details on Full Safety Pattern Gauges, click here.

Ashford Instrumentation can also supply a range of process industry valves and manifolds, please click here for details
