Stainless Steel Snubber - Adjustable

Snubbers are used to dampen and improve pressure gauge readings by suppressing the effects of pulsation and pressure peaks in the pressure line.

 The body is machined from 316 stainless steel bar stock and supplied with an adjustable internal screw to restrict the flow of the process media. A suitably located snubber will significantly increase the life of a pressure gauge on arduous applications such as reciprocating pumps and copmpressors, hydraulic presses or fluid power systems. .

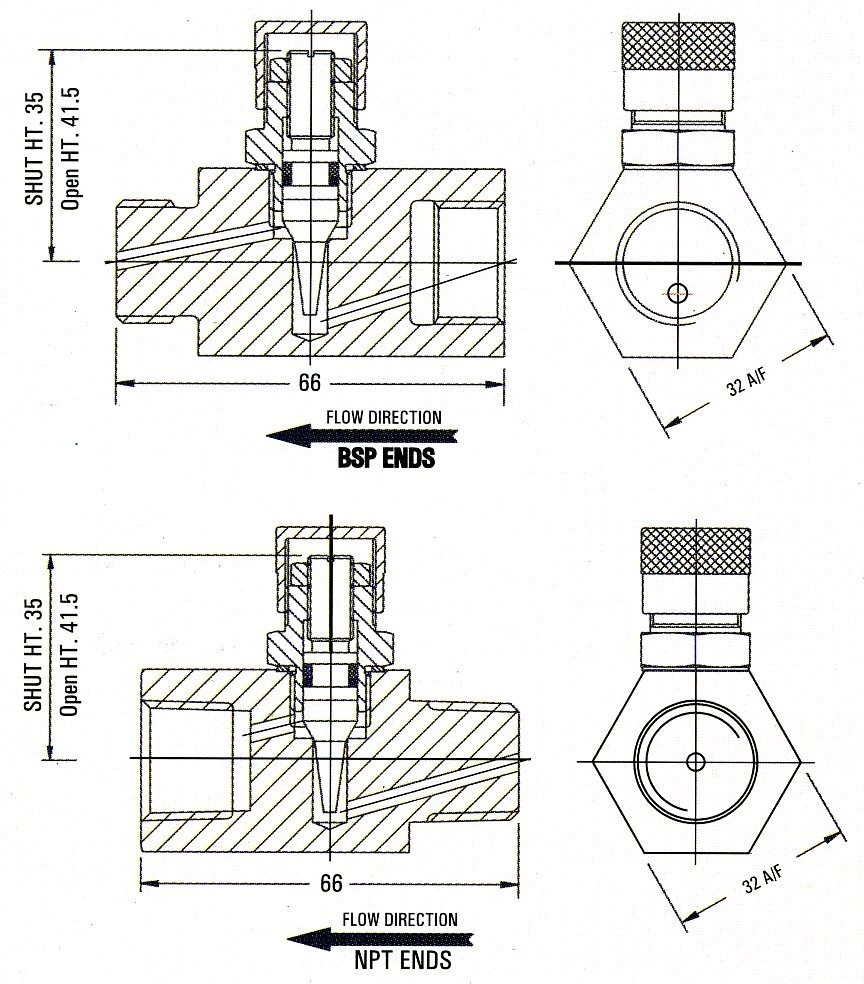

Please note that NPT versions are designed to flow Male to Female and BSP versions are designed to flow Female to Male (please see drawing attached).

As well as supplying process valves, Ashford Instrumentation Ltd can also supply an extensive range of pressure gauges and pressure transmitters.
