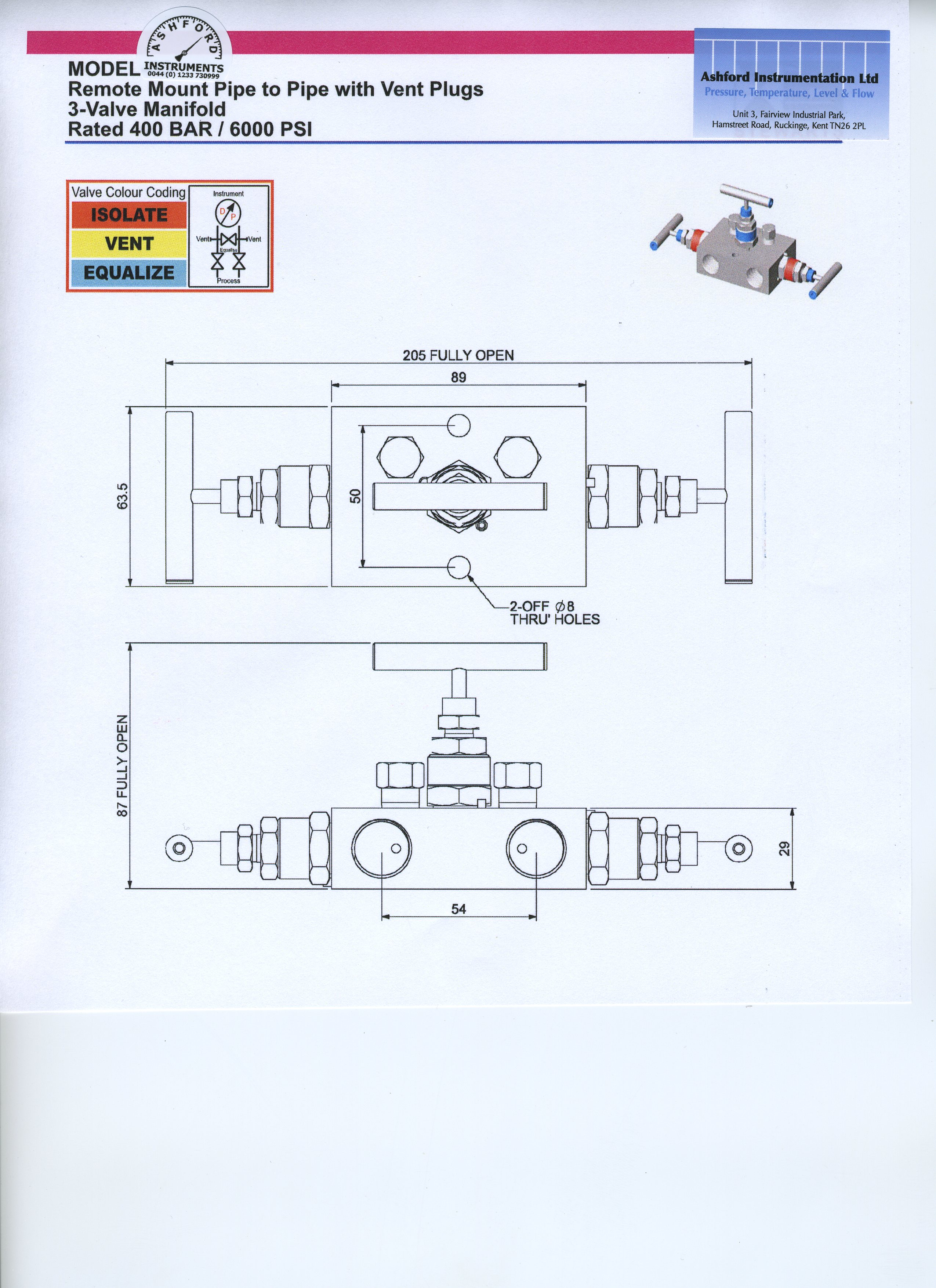

Model AIP3 Drawing



Data Sheet

3-Valve Manifold Remote Mount Pipe To Pipe - Model AIP3 Generation 200 Series

The Ashford Instrumentation Ltd 3-Valve Manifold Remote Mount from our Generation 200 Series has two isolating valves, one equalising valve and is ideal for the use on differential pressure gauges or transmitters.

Operation - In normal operation the isolation valves are open while the equalize valve is closed. This provides a differential pressure reading to the pressure gauge or transmitter. To zero the instrument, first close the downstream isolate valve and open the equalize valve and adjust the zero setting on the instrument.

As well as supplying process valves, Ashford Instrumentation Ltd can also supply an extensive range of pressure gauges and pressure transmitters.
