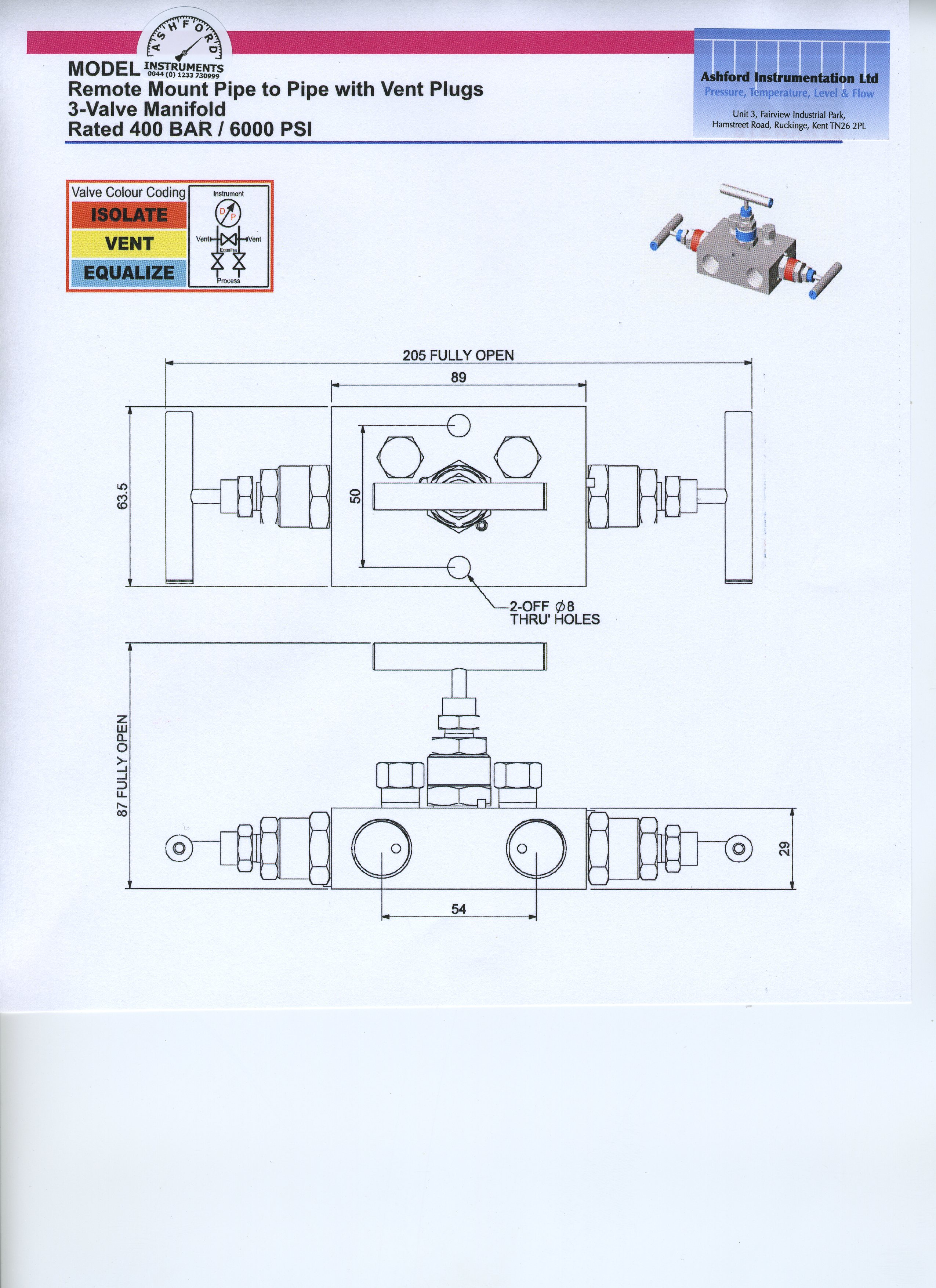

Model AIV3 Drawing

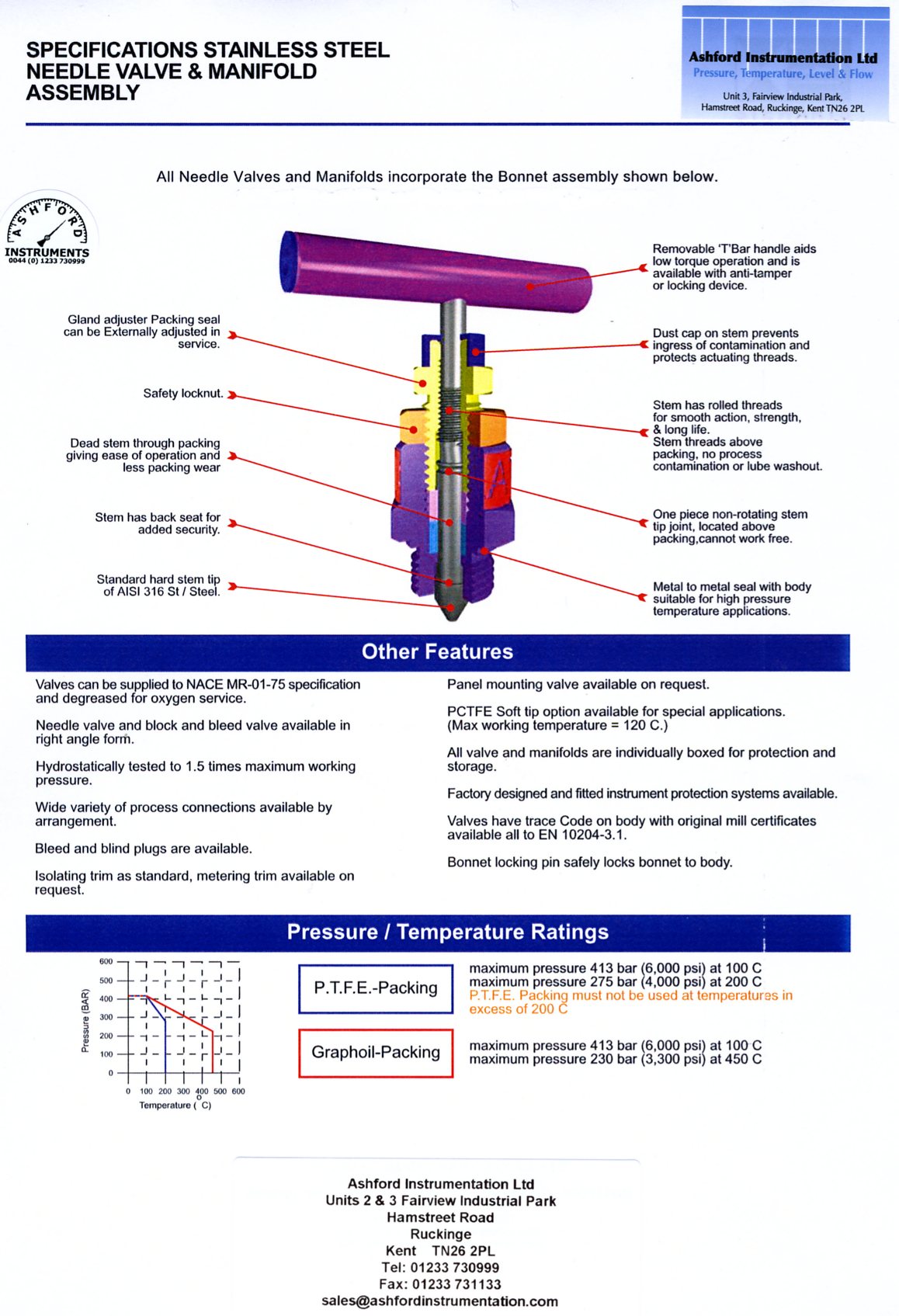

Data Sheet

3-Valve Manifold Flat Face Remote Mount Pipe To Pipe - Model AIV3 Generation 200 Series

The Ashford Instrumentation Ltd 3-Valve Manifold Flat Face Remote Mount Pipe To Pipe from our Generation 200 Series has two isolating valves, one equalising valve and the option of two vent ports.

Operation - In normal operation the isolation valves are open while the equalize valve is closed. This provides a differential pressure reading to the pressure gauge or transmitter. To zero the instrument, first close the downstream isolate valve and open the equalize valve and adjust the zero setting on the instrument.

As well as supplying process valves, Ashford Instrumentation Ltd can also supply an extensive range of pressure gauges and pressure transmitters.
