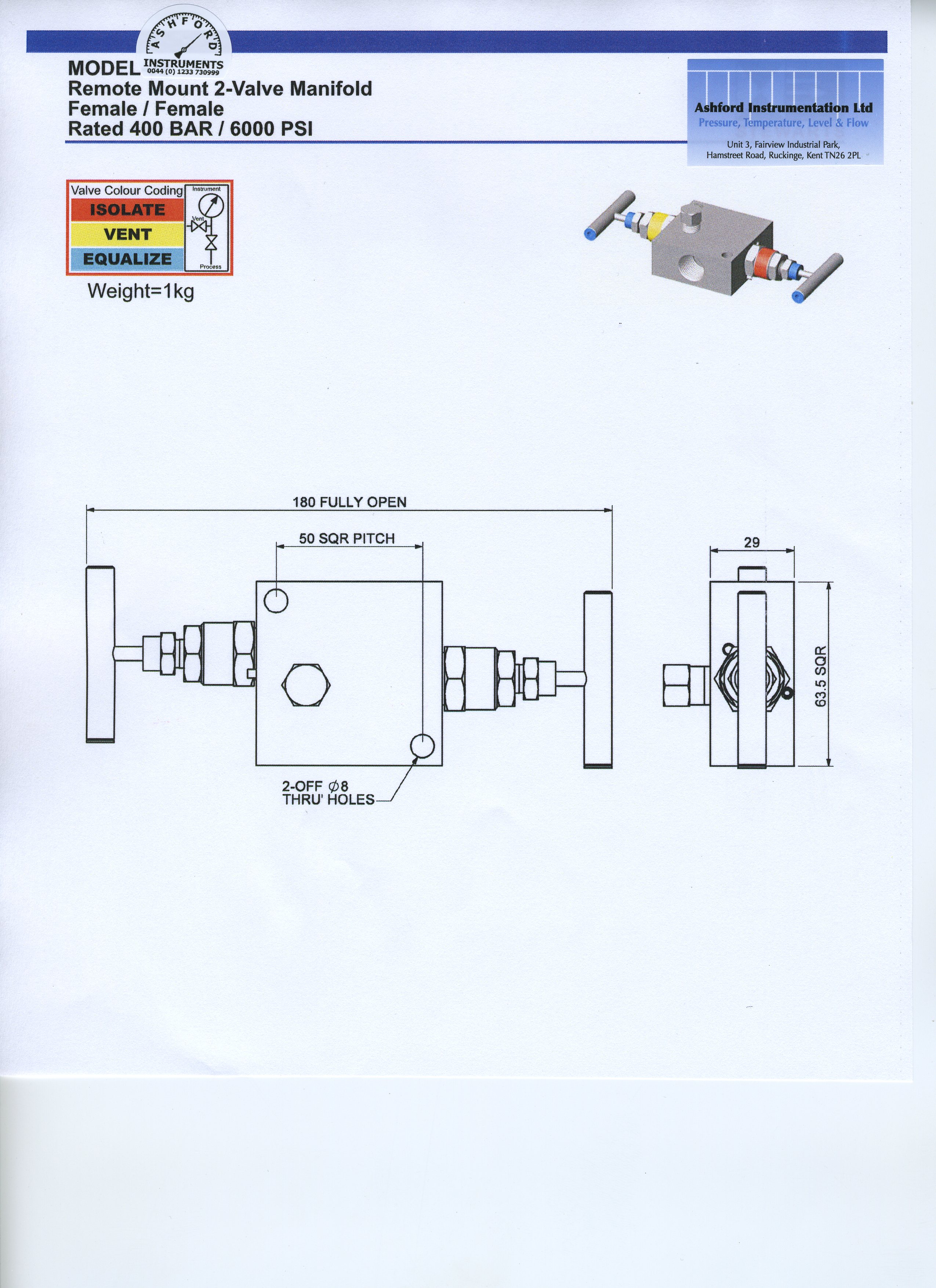

Drawing AIO2

2-Valve Manifold Flat Face Remote Mount - Model AIO2 Generation 200 Series

The Ashford Instrumentation Ltd 2-Valve Block & Bleed  Flat Face Remote Mount Manifold for isolation and bleed. 2-valve remote female / female valve manifolds from our Generation 200 Series are designed in a single block form with female screwed inlet and outlet ports combining isolation valve and vent / calibration valve.

These valves are generally used on static pressure transmitters, switches or pressure gauges. 316 stainless steel is the standard material of construction although Monel and Hatelloy is also available. This product is manufactured in the UK. Maximum pressre rating is subject to packing material and process temperature, please see attached data sheet for full details.

As well as supplying process valves, Ashford Instrumentation Ltd can also supply an extensive range of pressure gauges and pressure transmitters.
