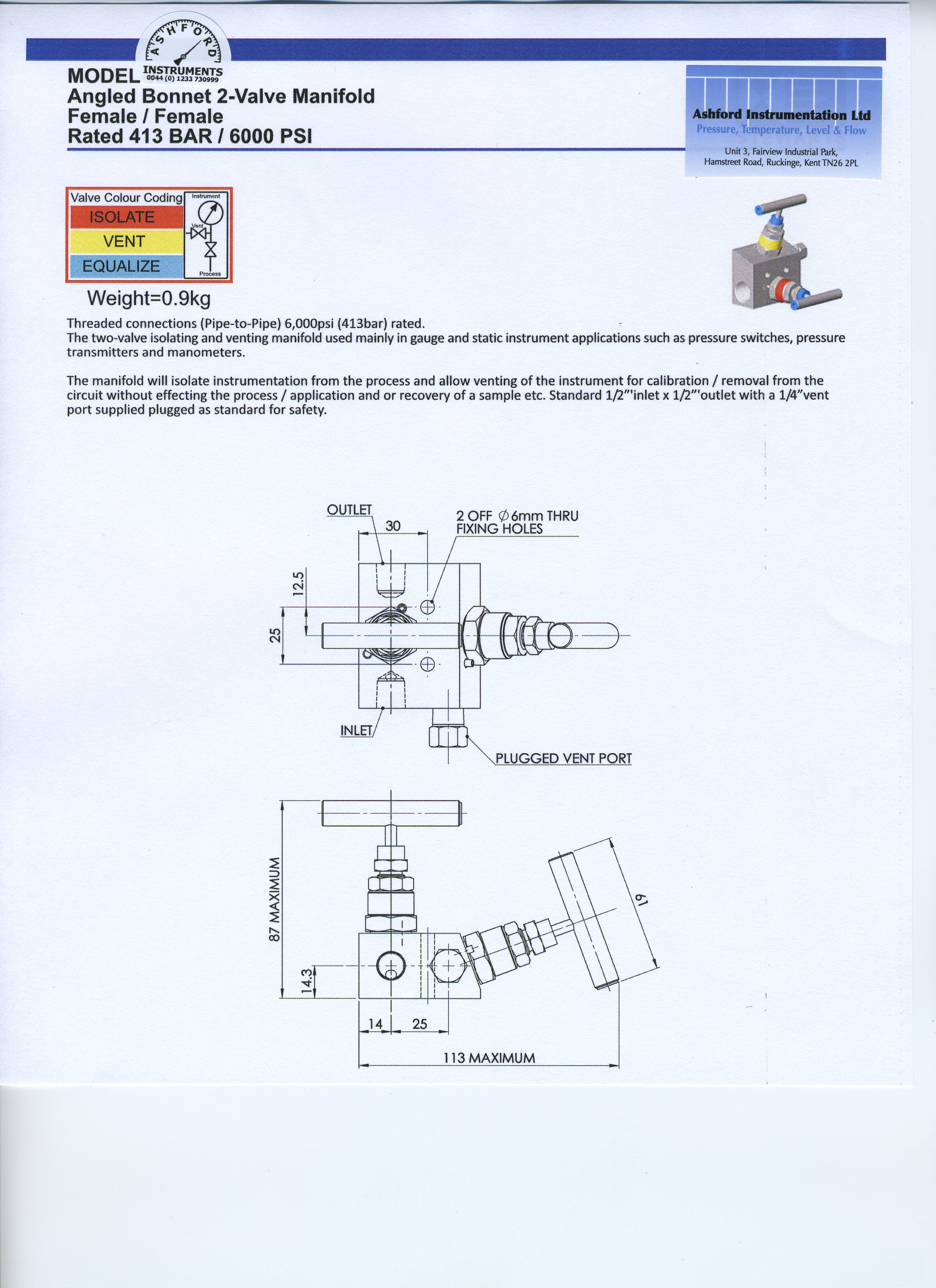

2-Valve Manifold Angled Bonnet - Model AIK2 Generation 200 Series

The Ashford Instrumentation Ltd 2-Valve  Angled Bonnet Block & Bleed Manifold  for isolation and bleed. 2-valve direct mount manifolds from our Generation 200 Series is designed in a single block form with female screwed inlet and outlet ports combining isolation valve and vent / calibration valve.

 These valves are generally used on static pressure transmitters, switches or pressure gauges. 316 stainless steel is the standard material of construction although Monel and Hatelloy is also available. This product is manufactured in the UK. Maximum pressre rating is subject to packing material and process temperature, please see attached data sheet for full details.

As well as supplying process valves, Ashford Instrumentation Ltd can also supply an extensive range of pressure gauges and pressure transmitters.
