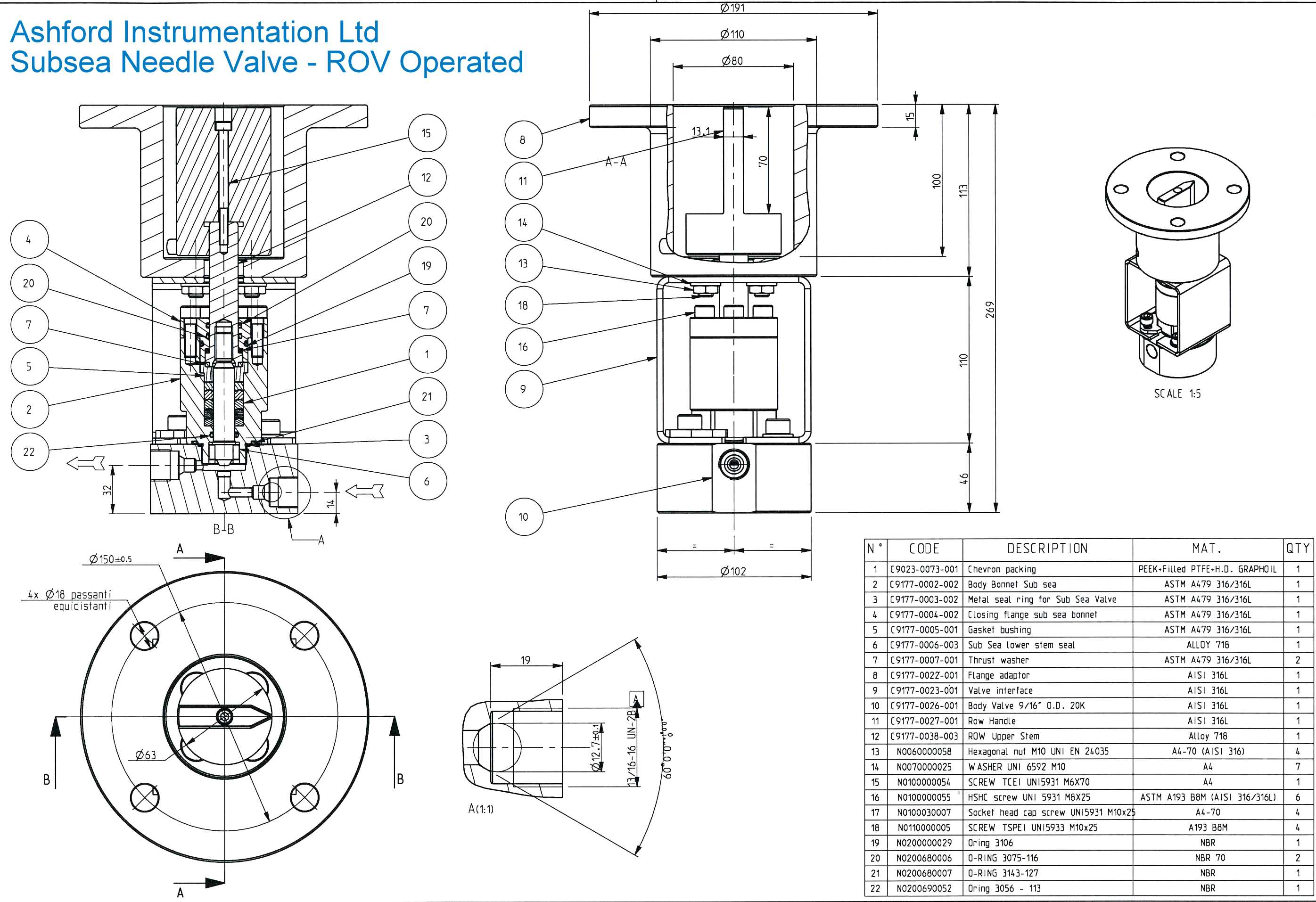

Dimensional Drawing





Subsea ROV Operated Needle Valves - 3000m Subsea

The Ashford Instrumentation range of subsea ROV operated needle valves are designed for upstream subsea applications where precision and high quality performance are required. They are commonly used with natural gas or more viscous fluids like hydraulic oil at high pressures.

The glandless design with full bore ports up to 13mm are available in 4 different pressure ratings up to 20000 PS depending on the port type which include BSP and NPT threads, JIC and Medium Pressure.  X, Y and T Bar Handles are available with natural stainless steel finish or colour coded powder coated. An ROV paddle operator is also available. A full range of materials is also available such as 316 stainless steel, Duplex, Super Duplex, Inconel 625, Incoloy 825, and Monel

The Ashford Instrumentation range of subsea valves are available configured as single isolation, single block & bleed and double block & bleed.
