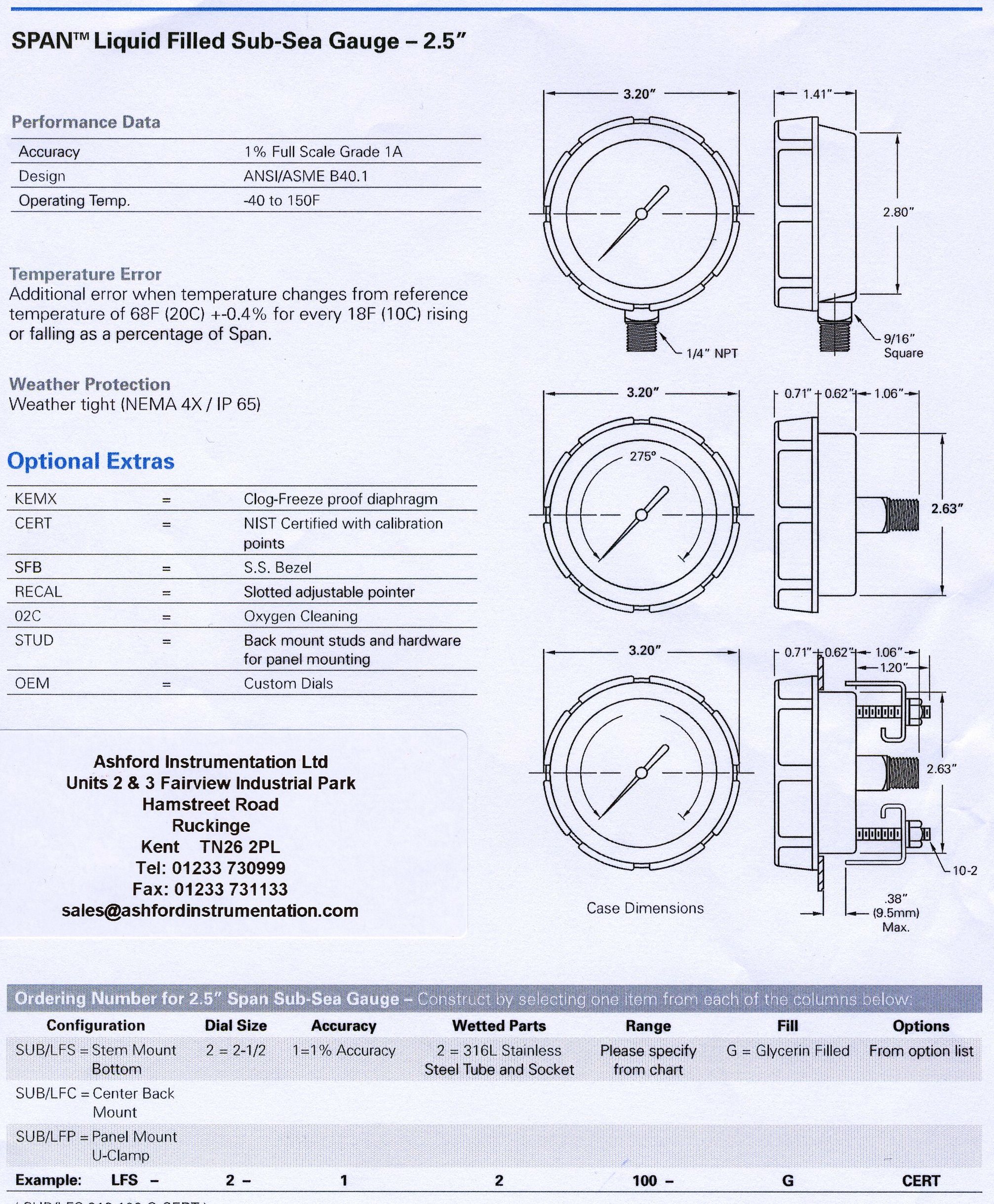

2.5" SPAN SUBSEA GAUGE DRAWING

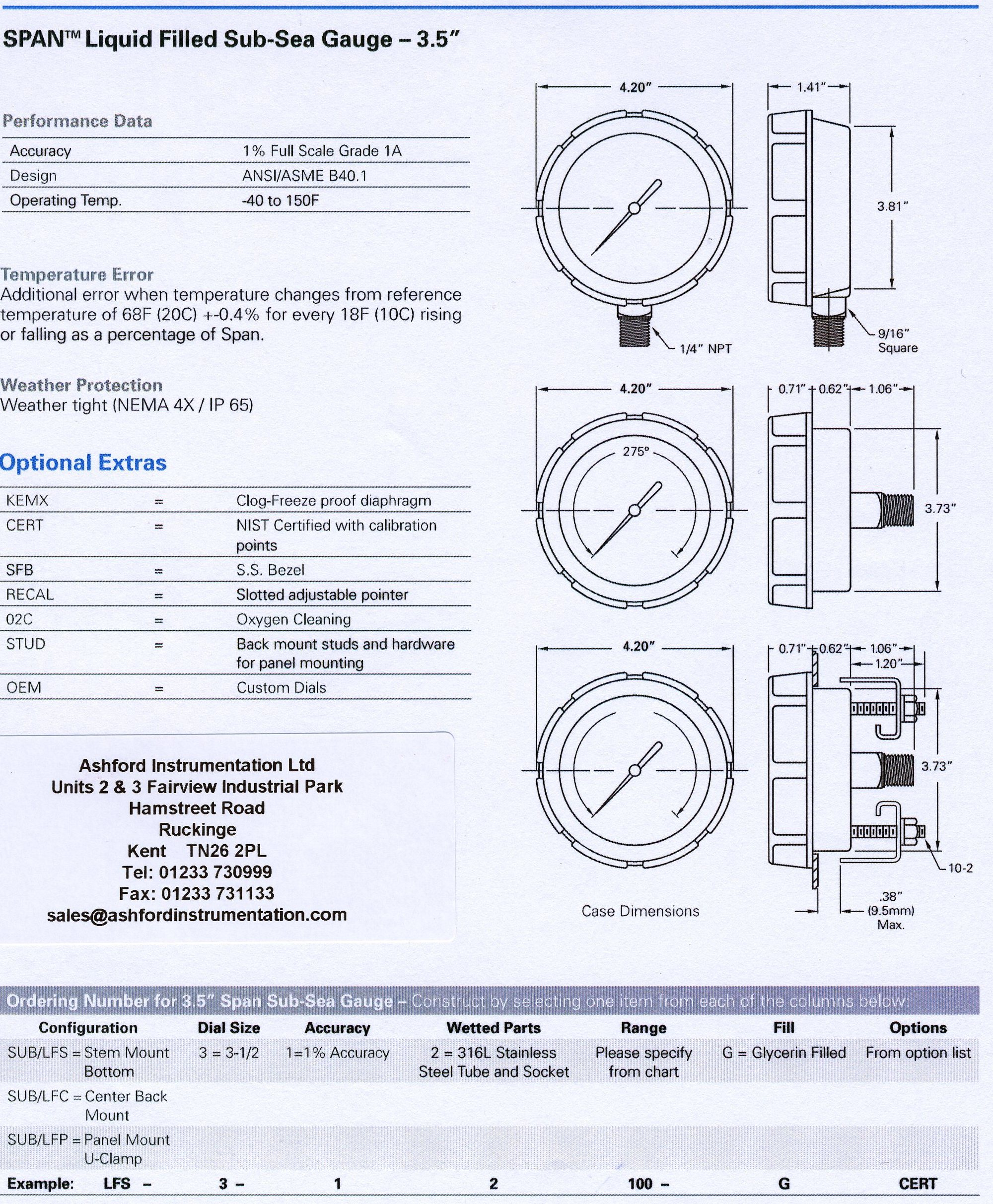

3.5" SPAN SUBSEA GAUGE DRAWING
4.5" SPAN SUBSEA GAUGE DRAWING
COMPENSATED DIAPHRAGM

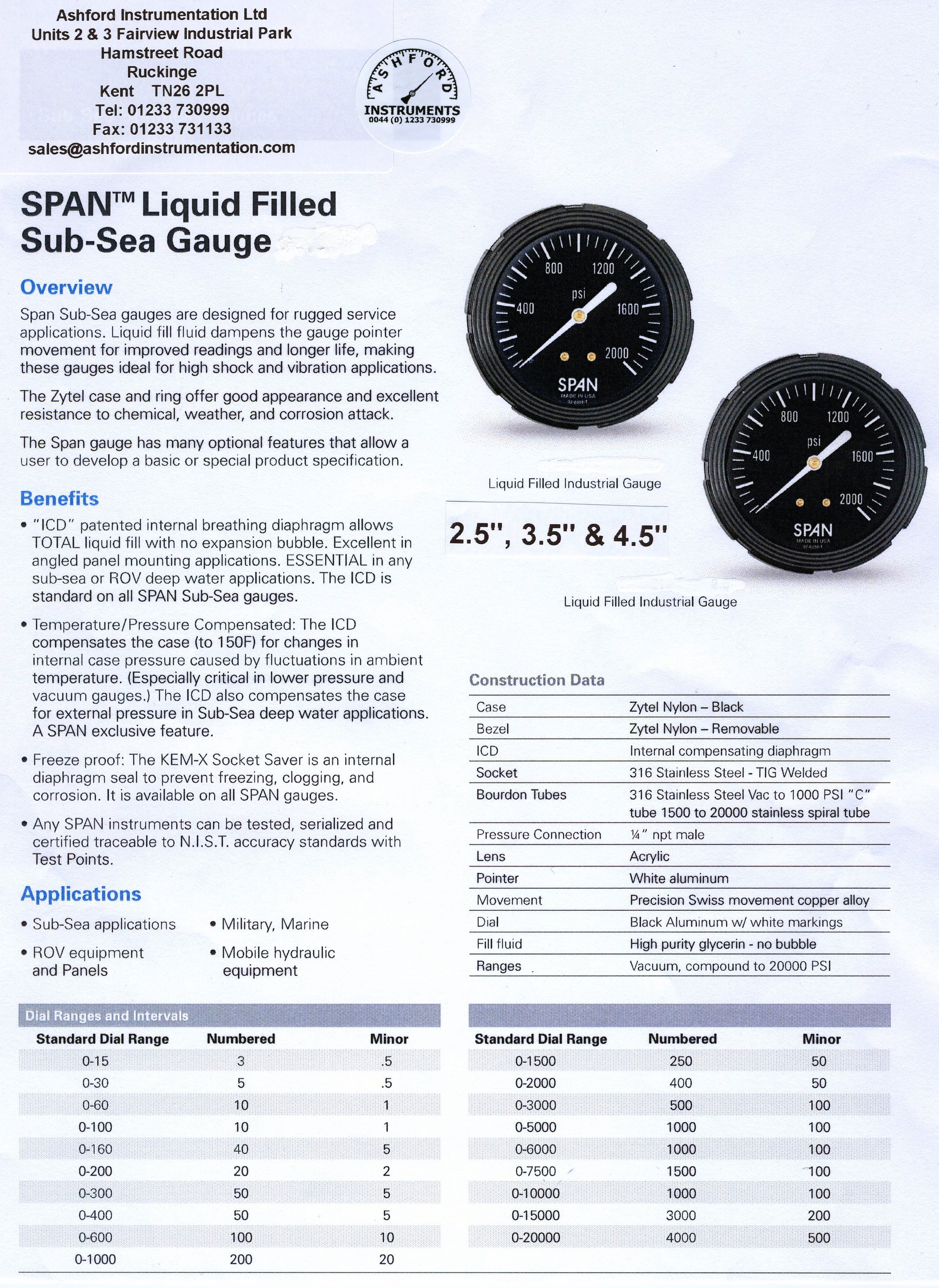

SPAN Instruments Subsea Gauge - 2.5", 3.5" & 4.5" Diameter

Ashford Instrumentation Ltd are an approved re-seller of the SPAN Instruments product range.

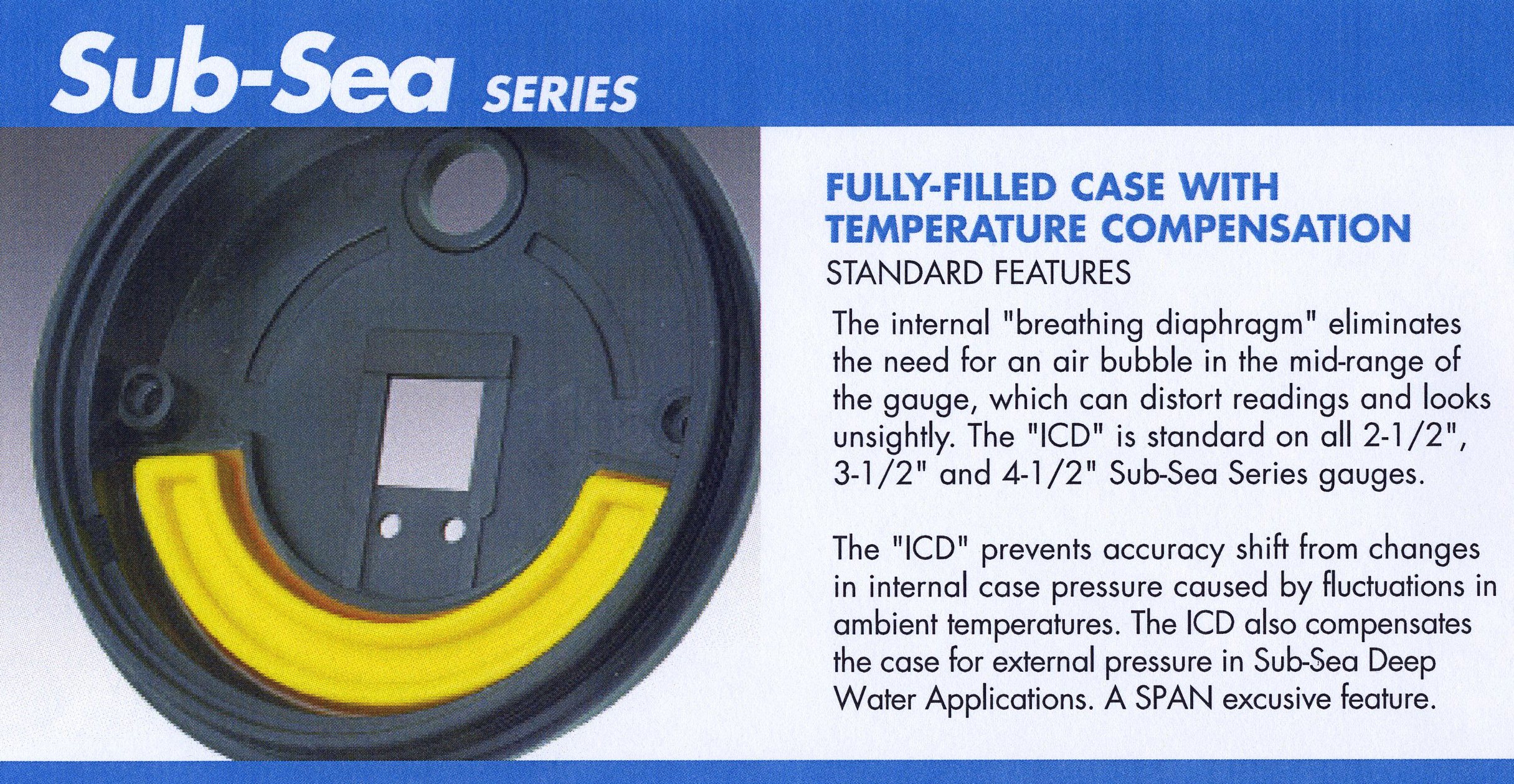

The Span SUB LFC direct mount back entry compensated subsea gauges are designed for rugged service applications. The liquid fill dampens the gauge pointer for improved reading and longer life making these gauges ideal for high shock and vibration applications. The Zytel nylon case and ring offer good appearance and excellent resistance to chemical, weather and corrosion attack. SPAN compensated subsea gauges feature a special version of the SPAN "ICD" (Internal Compensating Diaphragm) patented internal breathing diaphragm allowing 100% liquid fill with no expansion bubble which is essential in any subsea or ROV deep water application. SPAN subsea gauges have been tested to a depth of 3000m with no significant effect on accuracy or performance.

Span SUB LFC range of compensated subsea gauges are available diameters 2.5", 3.5" & 4.5" and feature a non-glare black dial with white lettering.

In the event of a non-compensated subsea gauge beng required for the application, we would direct you to the other products featured on our website by clicking HERE.
